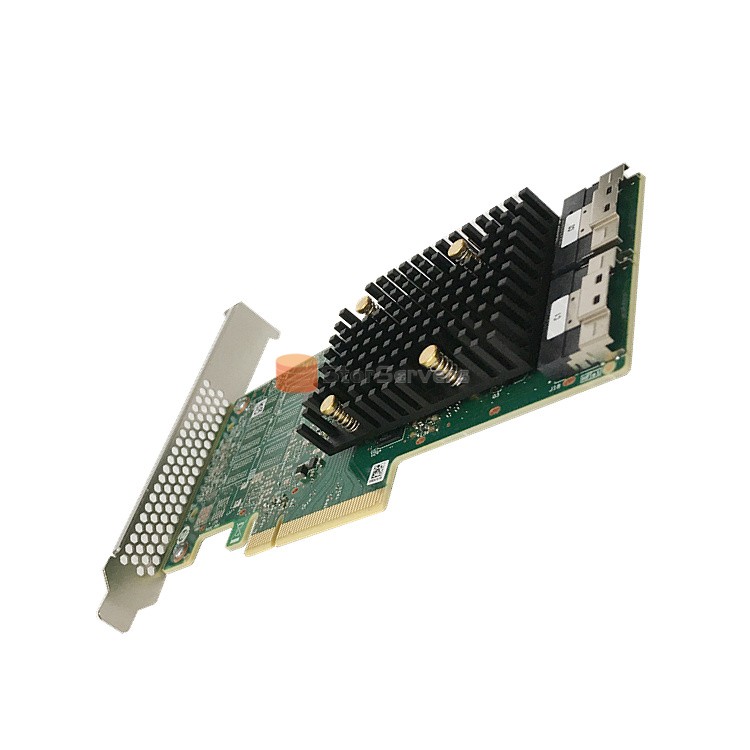

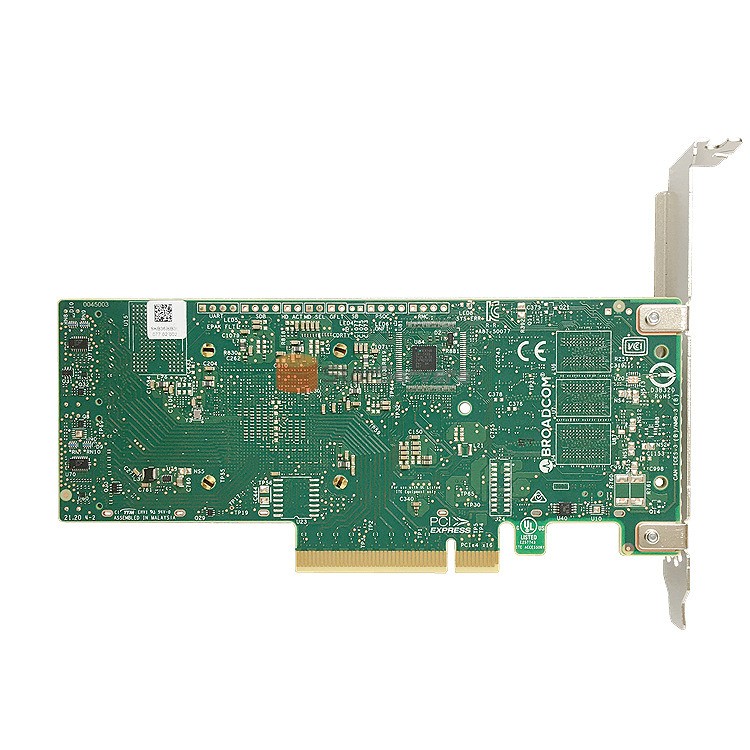

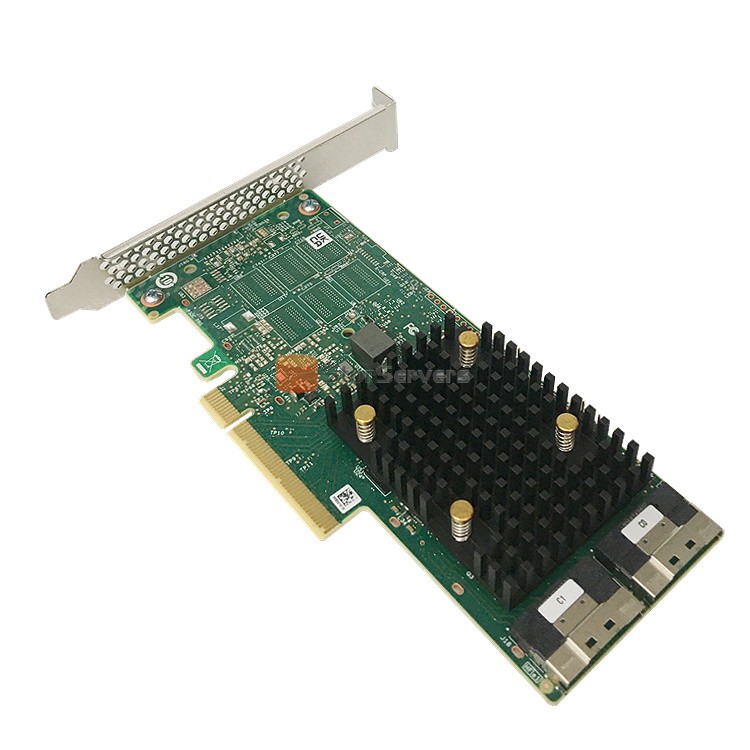

Spot Stocks Raid Card 540-16i Supports RAID5 12Gb 4Y37A78835 SAS3816 PCIe Gen4

Spot Stocks Raid Card 540-16i Supports RAID5 12Gb 4Y37A78835 SAS3816 PCIe Gen4

High Performance 12Gb/s PCI Express SATA+SAS RAID Controller

Model	540-16i
Part Number	4Y37A78835
Form factor	PCIe low profile
Controller chip	SAS3816
Warranty	3 years

Package Type :
Carton
Single package size :
26*20*8CM
Single gross weight :
0.54 KG
Min. order :
1 Piece
Shipping :
Contact supplier to negotiate shipping details
Payments :
Western Union、L/C、T/T、MoneyGram、D/A、D/P
Returns & Refunds :
Returns & refunds accept

Inquire Now

Product Details

Raid Card 540-16i SAS3816 PCIe Gen4 12Gb

Key Features

MegaRAID FastPath SSD performance acceleration
Auto-resume on array rebuild or array reconstruction after the loss of system power
Online Capacity Expansion
Online RAID Level Migration
Fast initialization for quick array setup
Consistency check for background data integrity
Extensive online configuration options and advanced monitoring and event notification
Patrol read for media scanning and repairing
Global and dedicated hot spare with revertible hot spare support
Drive roaming
MegaRAID support for self-encrypting drive (SED) services
Hardware Secure Boot

Specification

Model	RAID 540-16i
Part number	4Y37A78835
Form factor	PCIe low profile
Controller chip	SAS3816
Host interface	PCIe 4.0 x8
Port interface	12 Gb SAS
Number of ports	16
Port connectors	Two x8 SFF-8654
Drive interface	SAS, SATA
Drive type	HDD, SED, SSD

Lead time

Quantity (pieces)	1-10	10-60	>60
Lead time (days)	3	3-5	To be negotiated

About Us

STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!

Our Advantages

FAQ

Q1: What payment method do you accept?

A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
