LSI 9361-16i 05-25708-00 raid card sas controller sff8643 Megaraid for servers

LSI 9361-16i 05-25708-00 raid card sas controller sff8643 Megaraid for servers

A new enterprise feature employed by the 12 Gb/s MegaRAID SAS controllers is advanced drive diagnostic technology.

Model	LSI 9361-16I
Part Number	05-25708-00
SAS Controller	LSI SAS3316
Cache Protection	Optional CacheVault Flash Module (LSICVPM02)
Warranty	3 Year

Inquire Now

Product Details

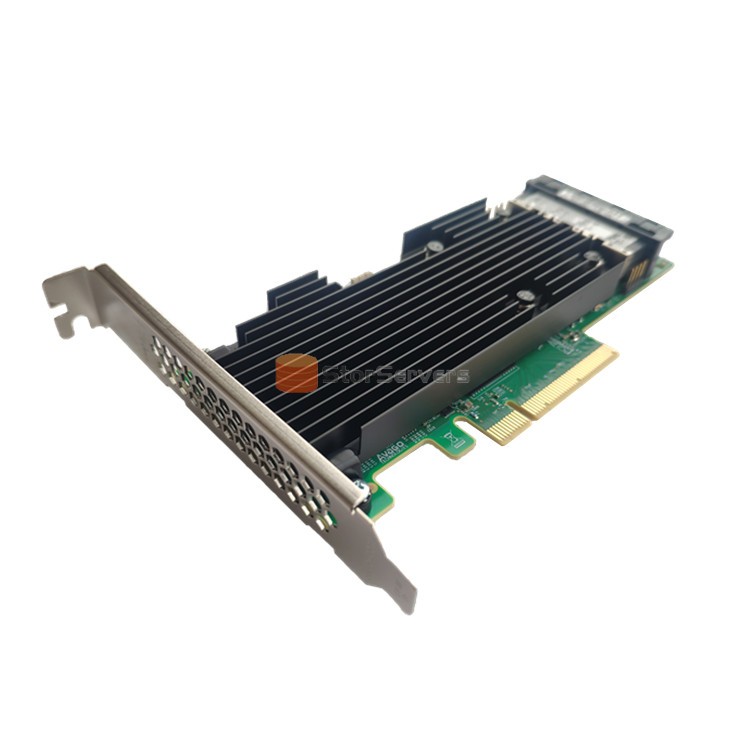

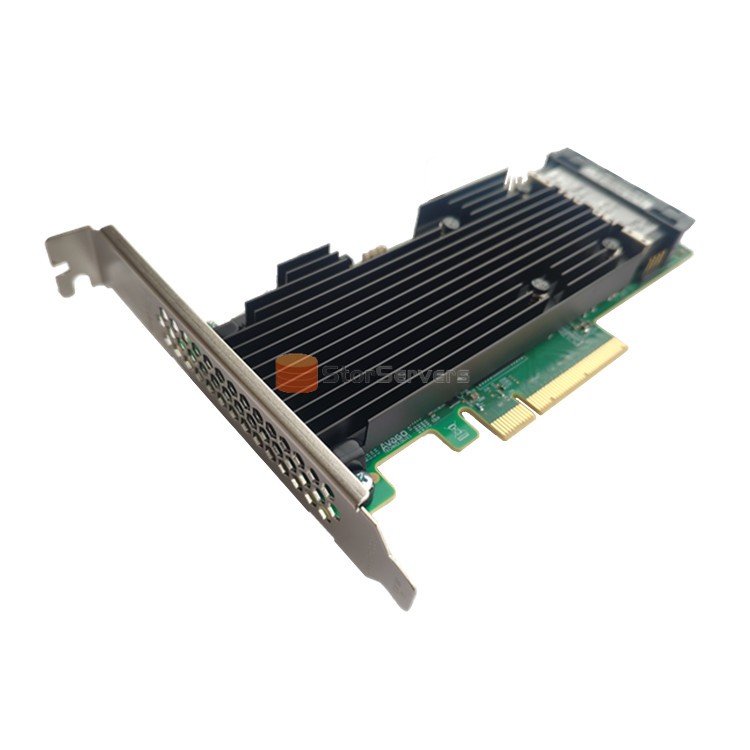

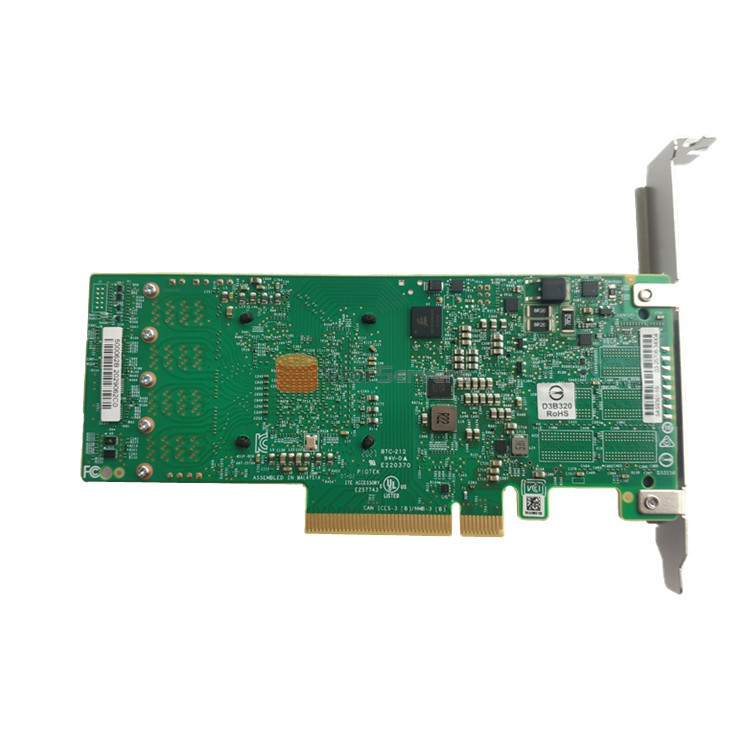

LSI 9361-16i 05-25708-00 RAID CARD

Key Features

• High-performance 12 Gb/s data transfer rates

• 16 internal 12 Gb/s SATA+SAS ports

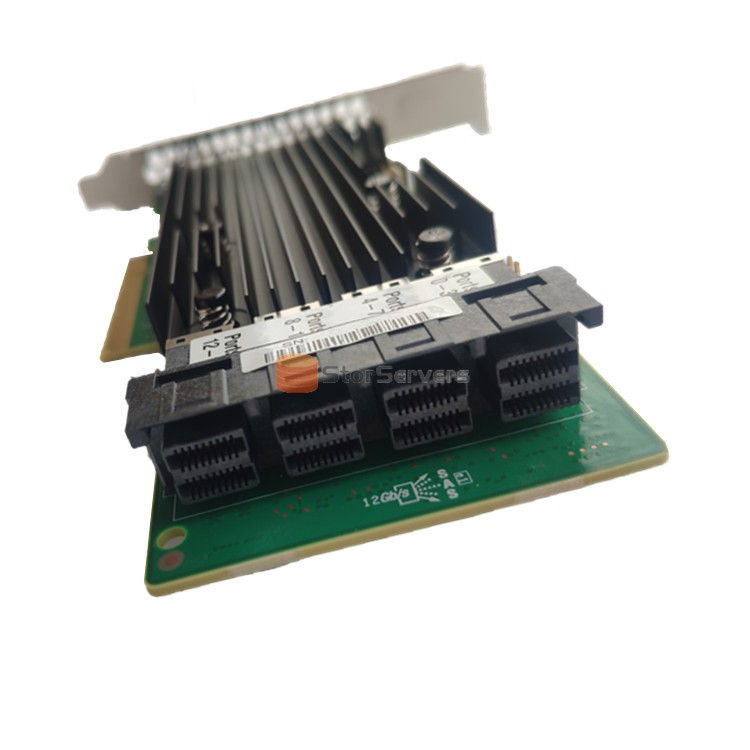

• Four mini-SAS SFF8643 internal connectors (horizontal mount)

• SAS3316 RAID-on-Chip

- Dual-core 1.2 GHz PowerPC 476

- 16 Native 12 Gb/s SAS/SATA ports

• PCI Express 3.0 host interface

• 2 GB DDR3 cache memory

• RAID levels 0, 1, 5, 6, 10, 50, and 60

• Support for CacheVault flash cache protection

Key Advantages

• 12 Gb/s solutions accelerate performance for next-generation data centers, web and cloud

• Delivers enterprise-class data protection and security

• Preserves investment in 6 Gb/s and 3 Gb/s drives

• Support for Advanced Software options

• Connect up to 240 3 Gb/s, 6 Gb/s, or 12 Gb/s SATA and SAS devices

Specification

Model	LSl 9361-16i
MPN	05-25708-00
Connectors	Four SFF8643 *4
Device Support	Up to 240 SAS and/or SATA devices
Data Transfer Rates	Up to 12 Gb/s per port
Host Bus Type	x8 lane PCl Express 3.0 compliant
l/0 Processor/SAS Controller	SAS3316 dual-core ROC
Physical Dimensions	MD2 low profile
Key RAID Data Protection Features	RAID levels 0,1,5, and 6 RAID spans 10,50, and 60
Warranty	3 years

About Us

STOR TECHNOLOGY LIMITED, Ltd founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcom!

Our Advantages

FAQ

Q1: What payment method do you accept?

A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
