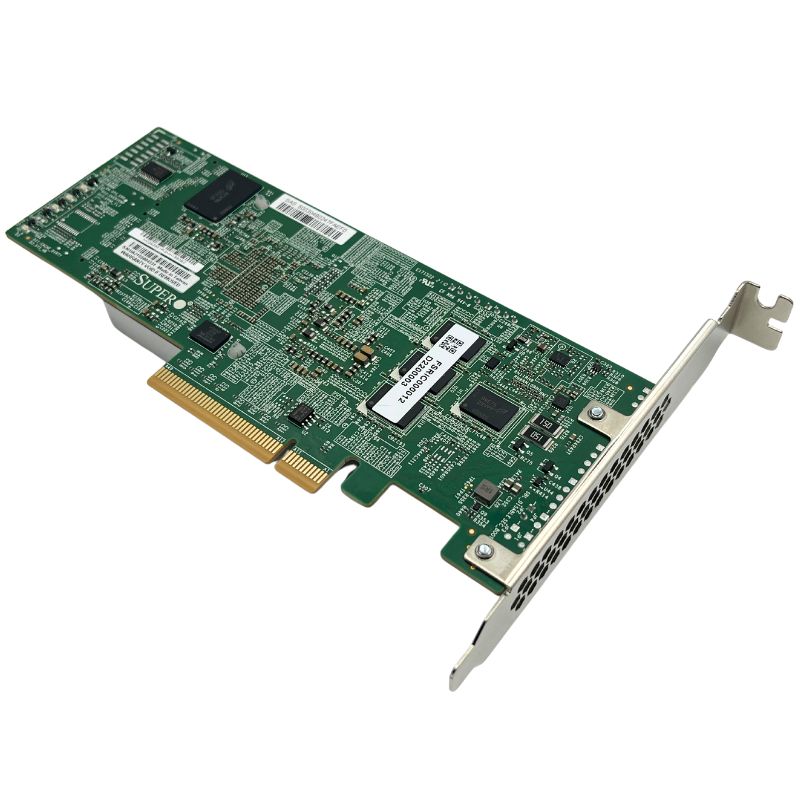

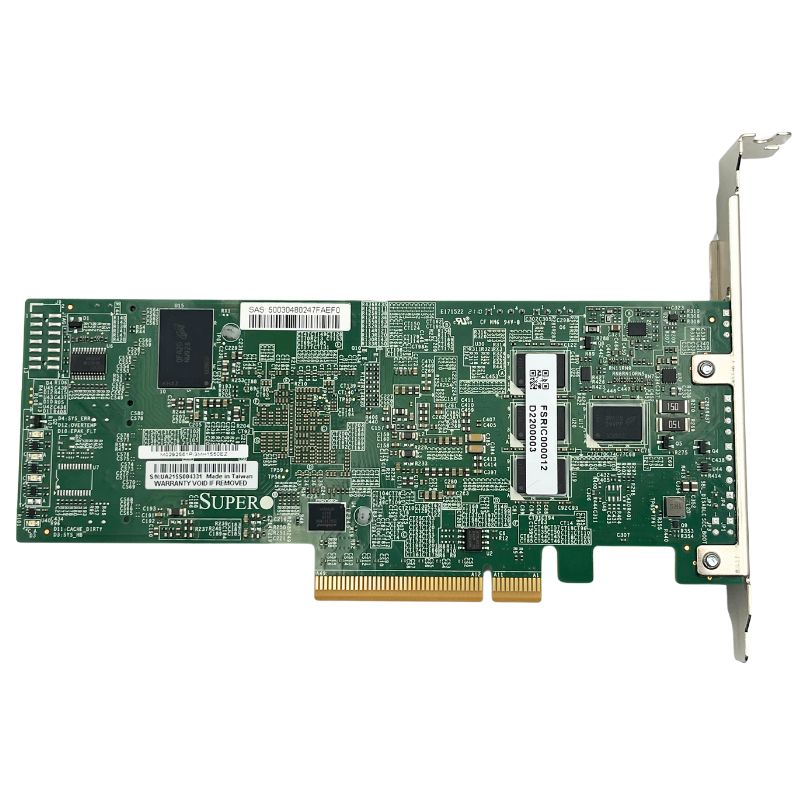

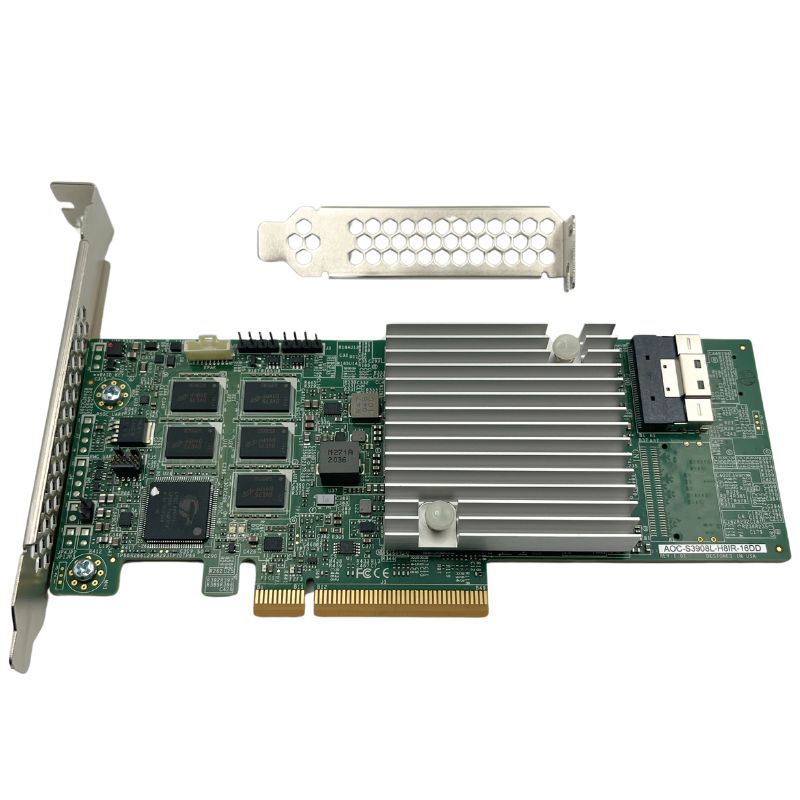

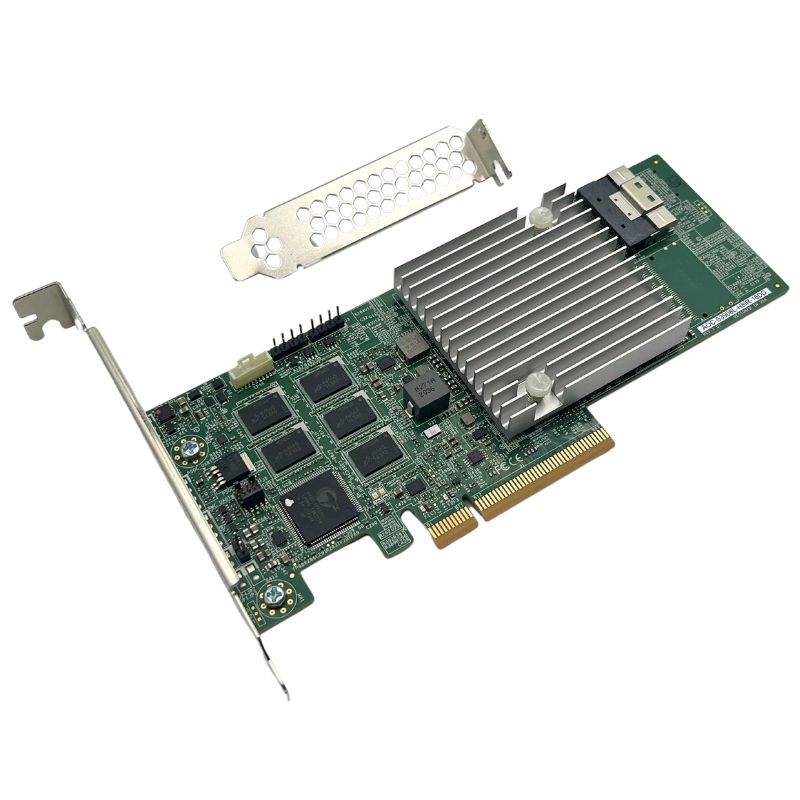

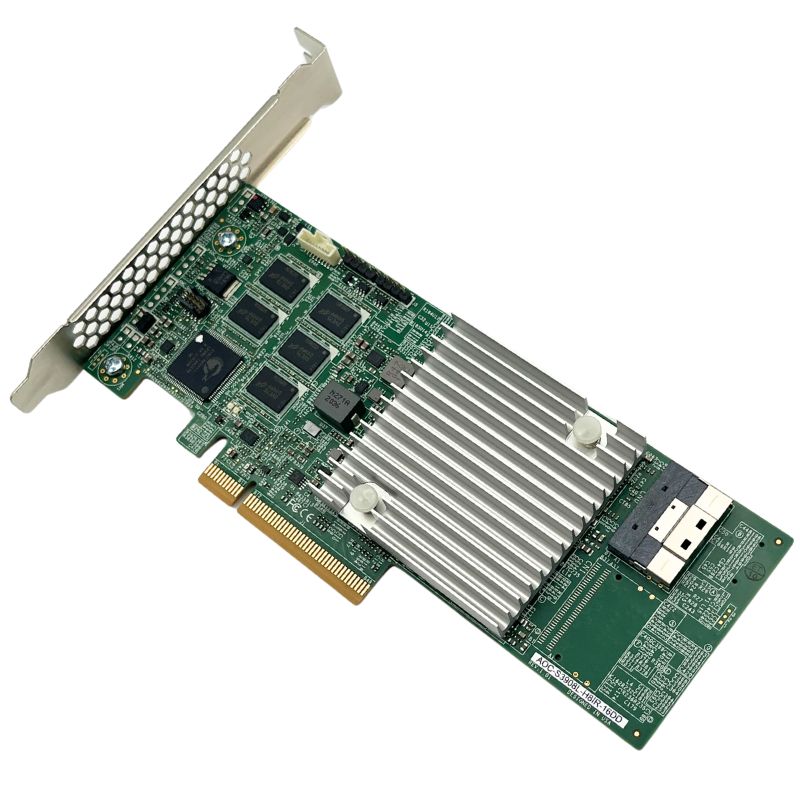

AOC-S3908L-HBIR-16DD raid card for server
Key Features
- 8 internal SAS3 ports, Supports up to 16 physical devices w/ expander
- 1x SlimSAS x8 black (100-Ohm) connector
- Low profile x8 PCIe Gen 4.0 root complex interface
- Supports RAID 0, 1, 5, 6, 10, 50, 60, JBOD Mode
- 8GB DDR4 onboard cache memory – 2666MHz
- Power consumption: 14 Watts for AOC-S3908L-H8iR & 18 Watts for AOC-S3916L-H16iR
- Supports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates and 3.0 & 6.0 Gb SATA
- Support for MCTP over PCIe
- Cachevault to protect onboard cache memory
- Supercap - BTR-CVPM05 (Optional)
- TFM – Included on-board
- Supports advanced software Encryption - included
- Supports in LSA Storage Authority Software WebGUI
- Secure boot
- UEFI Configuration utility
- OS Support: Windows/Linux
- Dimensions: 2.71" x 6.6" (H x L)
- Thermal operating range: System dependent (55°C or higher w/ enough airflow)
-
- Upgrade your storage infrastructure with the AOC-S3908L-HBIR-16DD, a high-performance SAS3 RAID adapter designed to meet your demanding storage requirements. Equipped with eight internal SAS3 ports, this adapter supports up to 16 physical devices when paired with an expander, providing exceptional scalability and flexibility.
-
- With its slim form factor and low-profile x8 PCIe Gen 4.0 root complex interface, the AOC-S3908L-HBIR-16DD seamlessly integrates into your system, maximizing storage capacity without sacrificing space or performance. It supports RAID 0, 1, 5, 6, 10, 50, 60, and JBOD modes, enabling you to configure your storage arrays to meet your specific needs.
-
- Featuring 8GB DDR4 onboard cache memory operating at 2666MHz, this adapter enhances data transfer speeds and ensures efficient storage operations. The onboard cache memory is further protected by Cachevault, providing data integrity during power disruptions. For additional protection, the optional Supercap - BTR-CVPM05 can be added.
-
- The AOC-S3908L-HBIR-16DD supports a wide range of SAS and SATA data transfer rates, including 3.0, 6.0, and 12.0 Gb/s SAS, as well as 3.0 and 6.0 Gb/s SATA. It also includes support for MCTP over PCIe, enabling efficient management and monitoring of the adapter.
-
- With advanced software encryption and support for secure boot, the AOC-S3908L-HBIR-16DD ensures the security and integrity of your data. It also provides a user-friendly UEFI configuration utility and integrates with the LSA Storage Authority Software WebGUI for convenient management and control.
-
- Upgrade your storage infrastructure with the AOC-S3908L-HBIR-16DD and experience enhanced storage performance, scalability, and data protection. Unlock the full potential of your storage capabilities with this advanced SAS3 RAID adapter
Specification
| Model |
AOC-S3908L-HBIR-16DD |
| Ports |
8 internal |
| Similar models |
05-50077-01 |
| Connectors |
One x8 SFF-8654 |
| Storage Interface |
12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| I/O Processor/ SAS Controller |
SAS3908 |
| RAID Levels |
0, 00, 1, 10 5, 50, 6, 60 |
| Max Devices Per Controller |
SAS/SATA: 240 NVMe: 32 |
| Host Interface |
x8 PCIe Gen 4.0 |
| Cache Size |
4 GB |
| Cache Protection |
CacheVault, CVPM05 05-50039-00 |
| Typical Power |
9.64W |
| Physical Dimensions |
6.127 in. × 2.712 in. |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
