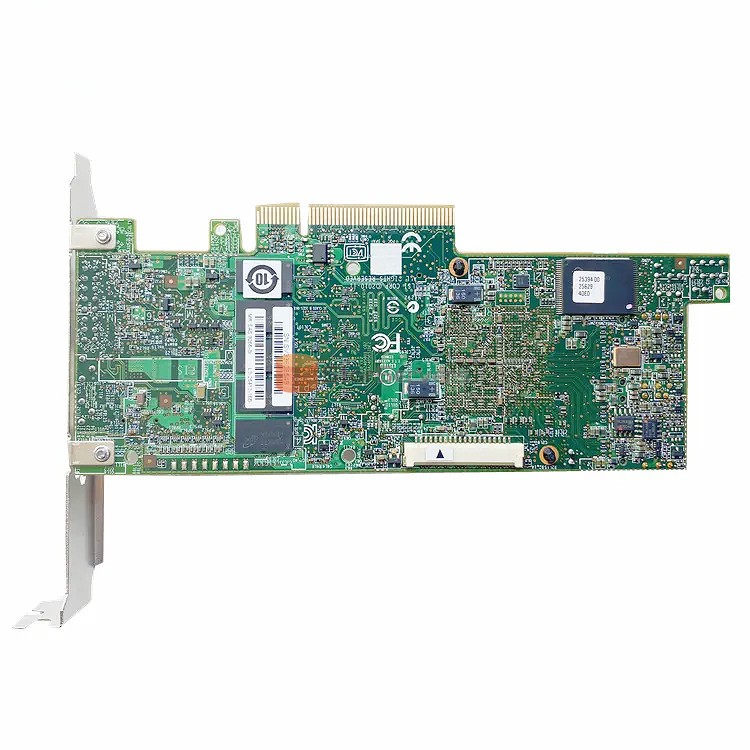

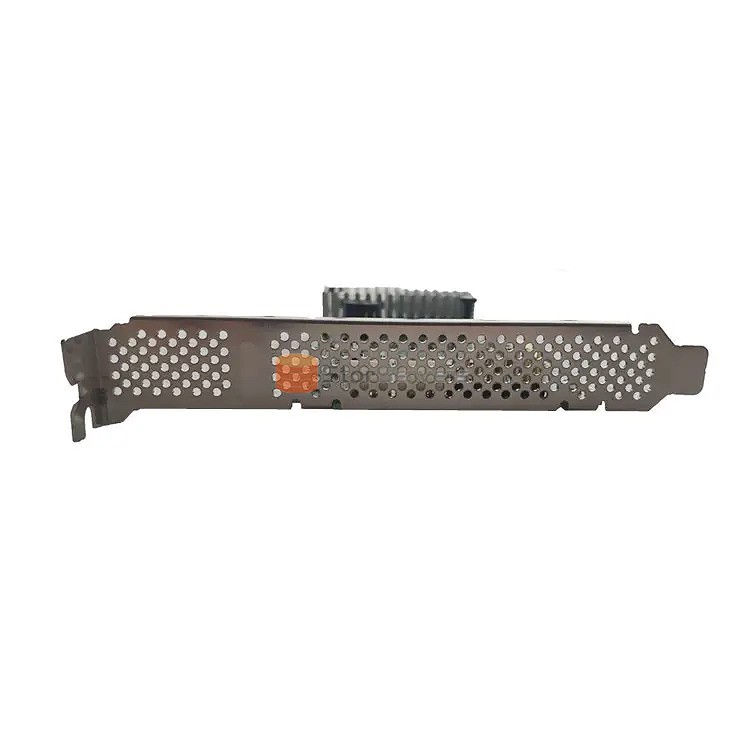

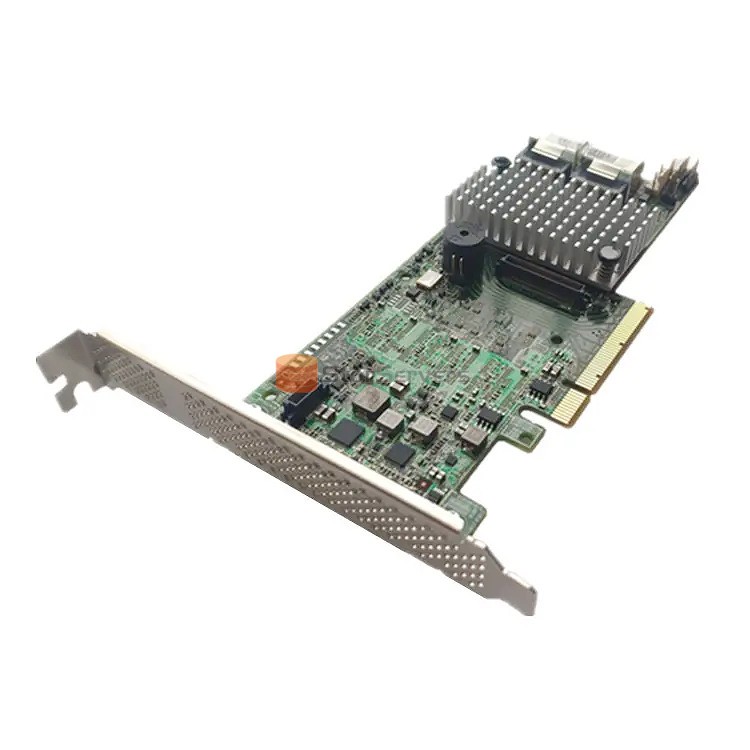

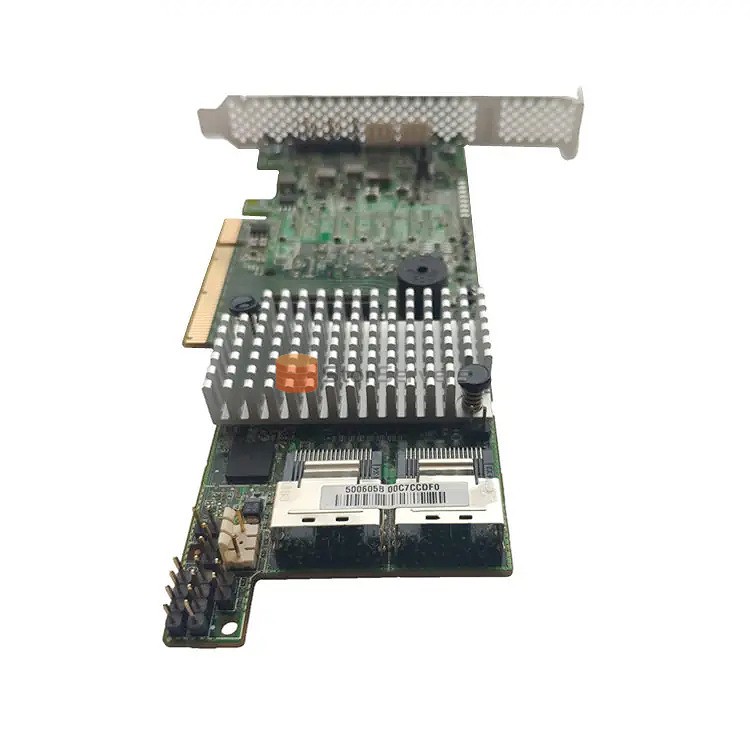

LSI 9271-8i raid controller L5-25413-18 LSI00330 Megaraid mini sas sff8087 6gb/s

LSI 9271-8i raid controller L5-25413-18 LSI00330 Megaraid mini sas sff8087 6gb/s

LSI MegaRAID SAS 9271-8i Four-Port 6Gb/s PCI Express 3.0 SATA+SAS RAID Controller

Model	LSI 9271-8i
Part Number	L5-25413-18 LSI00330
SAS Controller	LSI SAS 2208
Cache Protection	MegaRAID CacheVault flash cache protection (optional – LSICVM01 / LSI00297) MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
Warranty	3 year

Package Type :
Carton
Single package size :
26*20*8 CM
Single gross weight :
0.54 KG
Min. order :
1 Piece
Shipping :
Contact supplier to negotiate shipping details
Payments :
Western Union、L/C、T/T、MoneyGram、D/A、D/P
Returns & Refunds :
Returns & refunds accept

Inquire Now

Product Details

LSI 9271-8i Megaraid L5-25413-18 LSI00330 SAS CARD

Key Features

■ Eight internal 6Gb/s SATA+SAS ports

■ Two Mini-SAS internal connectors (SFF8087)

■ SAS 2208 Dual- core 6Gb/s ROC

–x2 800MHz PowerPC Processors

■ PCI Express 3.0 Host Interface

■ 1GB DDRIII cache memory

■ RAID Levels 0, 1, 5, 6, 10, 50 and 60

■ Support for NAND flash or BBU cache protection solution

Key Advantages

■ Unmatched RAID performance

■ Connect up to 128 3Gb/s and 6Gb/s SATA and SAS hard drives or SSDs

■ Helps users realize potential of solidstate storage deployments

■ CacheVault technology option for greener, lower total cost cache protection (LSICVM01)

■ Heat-tolerant battery backup option (LSIiBBU09)

Specification

Model	LSI 9271 8i
MPN	L5-25413-18 LSI00330
Connectors	Two Mini-SAS SFF8087 internal connector (side mount)
Device Support	Up to 128 SAS and/or SATA hard drives and SSDs
Data Transfer Rates	Up to 6 Gb/s per port
Host Bus Type	x8 lane PCI Express 3.0 compliant
l/0 Processor/SAS Controller	LSI SAS 2208 Dual-Core RAID on Chip (ROC)
Cache Memory Options	1 GB 1333MHz DDRIII SDRAM
RAID levels	0 , 1 , 5 , 6 ,10 , 50 , 60
Availability	In Stock

Lead time

Quantity (pieces)	1-10	10-60	>60
Lead time (days)	3	3-5	To be negotiated

About Us

STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!

Our Advantages

FAQ

Q1: What payment method do you accept?

A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
