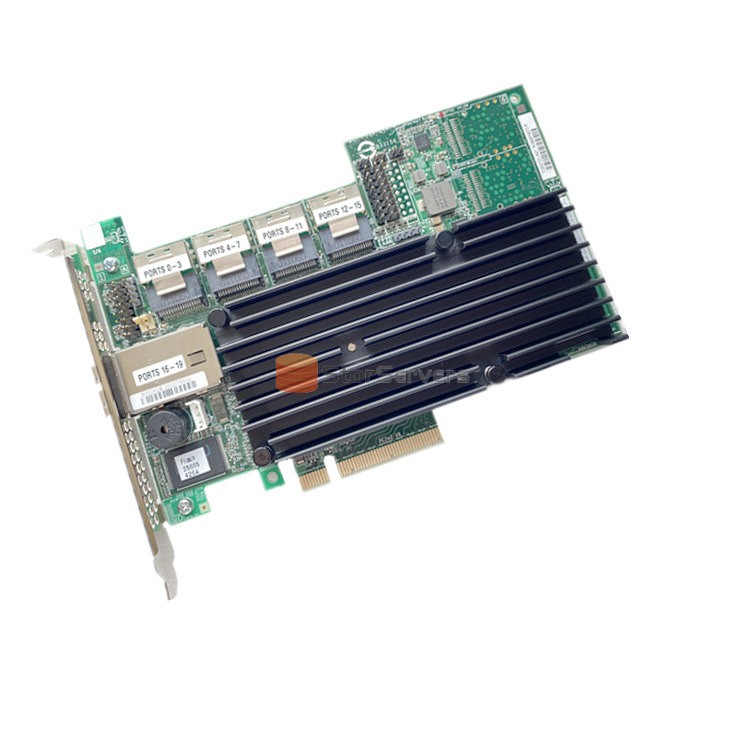

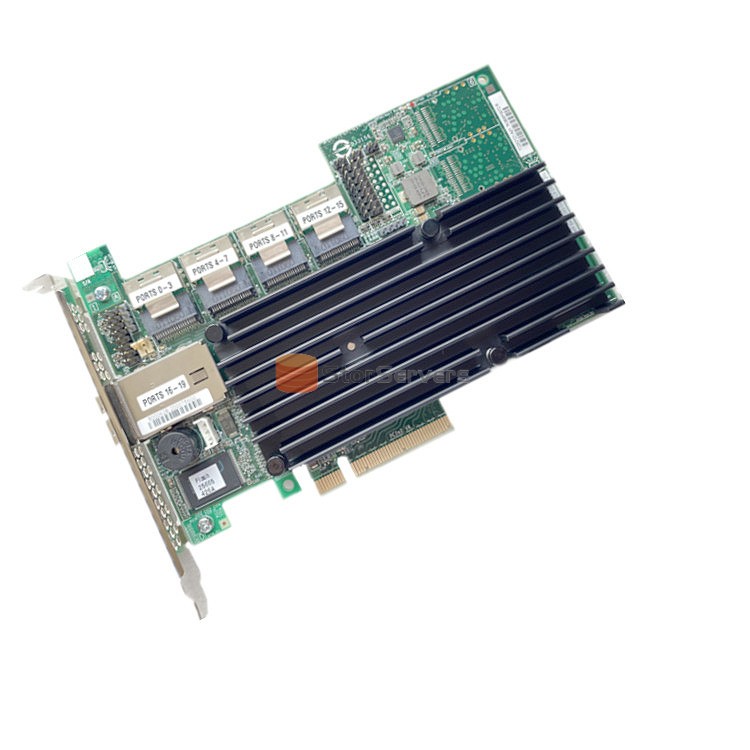

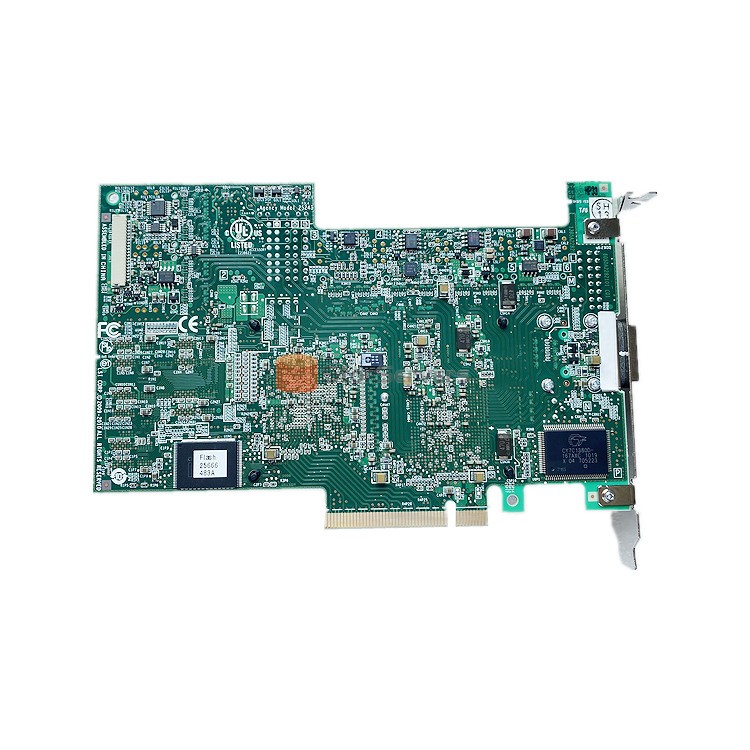

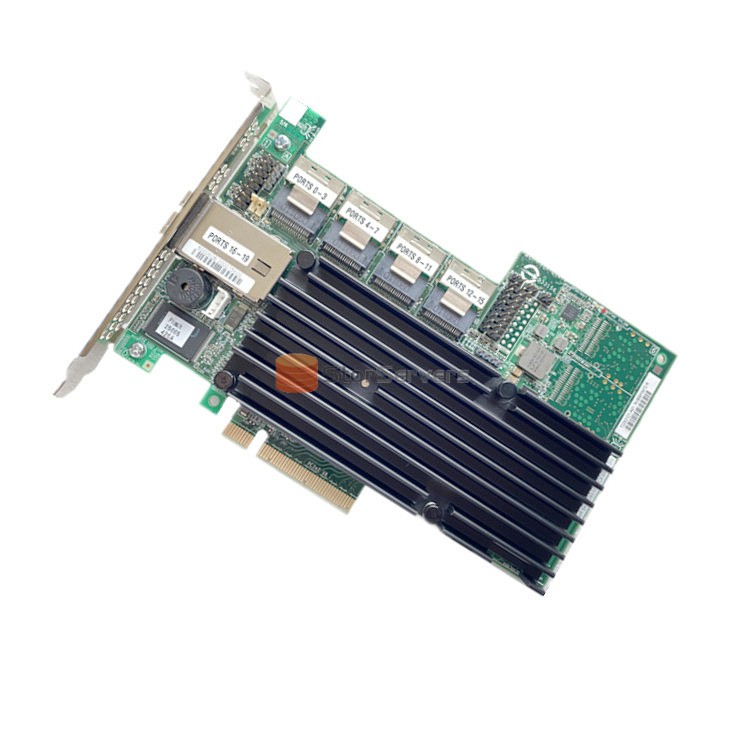

LSI SAS 9280-16i4e megaraid array card L5-25243-07 LSI00210 6gb/s

LSI SAS 9280-16i4e megaraid array card L5-25243-07 LSI00210 6gb/s

High Performance 6Gb/s PCI Express SATA+SAS RAID Controller

Model	LSI 9280-16i4e
Part Number	L5-25243-07 LSI00210
SAS Controller	LSI SAS 2108 RAID on Chip (ROC) and LSI SAS 2x36 Expander
Cache Protection	MegaRAID LSIiBBU08 (optional – LSIiBBU08 / L5-25343-06 LSI00264)
Warranty	3 years

Package Type :
Carton
Single package size :
26*20*8CM
Single gross weight :
0.54 KG
Min. order :
1 Piece
Shipping :
Contact supplier to negotiate shipping details
Payments :
Western Union、L/C、T/T、MoneyGram、D/A、D/P
Returns & Refunds :
Returns & refunds accept

Inquire Now

Product Details

LSI SAS 9280-16i4e megaraid LSI00210

Key Features

■ Twenty 6Gb/s SATA+SAS ports

■ Four Mini-SAS internal connectors (SFF-8087)

■ One Mini-SAS external connector (SFF-8088)

■ LSISAS2108 6Gb/s RAID-on-Chip –800MHz PowerPC®

■ 512MB 800MHz DDRII cache memory

■ Optional battery backup module

■ RAID Levels 0, 1, 5 and 6

■ RAID Spans 10, 50 and 60

Key Advantages

■ Internal drive storage and external JBOD expansion

■ PCI Express® 2.0 provides faster signaling for high-bandwidth applications

■ Connect up to 240 3Gb/s and 6Gb/s SATA and SAS hard drives

■ Support for Advanced Software Options Next

Specification

Model	LSl 9280-16i4e
MPN	L5-25243-07
OPN	LSI00210
Internal Connectors	Four Mini-SAS SFF8087 4i internal connectors
External Connectors	One Mini-SAS SFF8088 4x external connector
Device Support	Up to 240 SAS and/or SATA hard drives
Data Transfer Rates	Up to 6 Gb/s per port
Cache Memory	512MB 800MHz DDR II SDRAM
Host Bus Type	x8 lane PCI Express 2.0 Compliant
l/0 Processor/SAS Controller	LSI SAS 2108 RAID on Chip (ROC) and LSI SAS 2x36 Expander
RAID levels	0，1，5，6，10，50，60
Physical Dimensions	Half-Length, Full Height (6.6” x 4.376”)
Availability	In Stock

Lead time

Quantity (pieces)	1-10	10-60	>60
Lead time (days)	3	3-5	To be negotiated

About Us

STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!

Our Advantages

FAQ

Q1: What payment method do you accept?

A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
