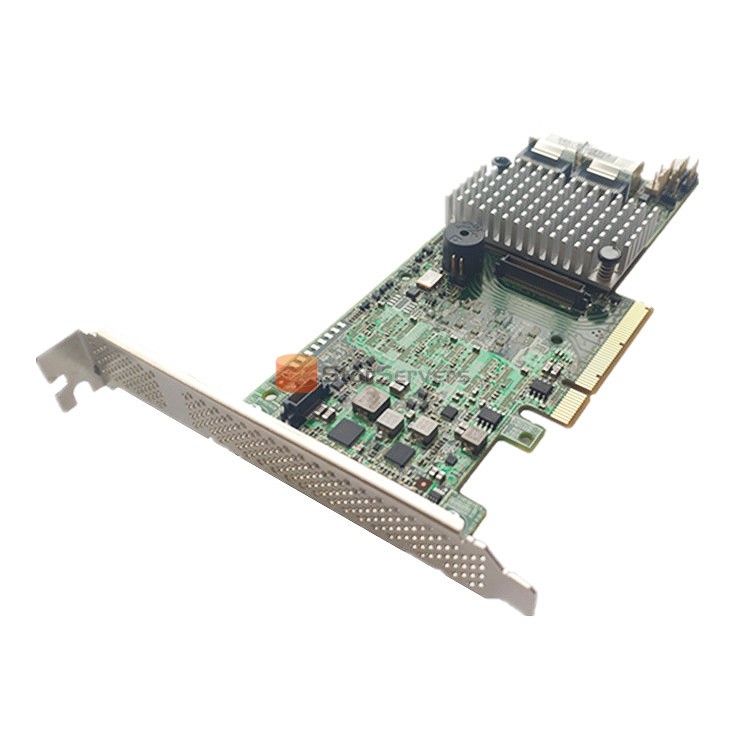

High performance LSI 9266-8i Megaraid array card L5-25413-16 LSI00295 mini sas sff8087

High performance LSI 9266-8i Megaraid array card L5-25413-16 LSI00295 mini sas sff8087

High Performance 6Gb/s PCI Express SATA+SAS RAID Controller

Model	LSI 9266-8i
Part Number	L5-25413-16 LSI00295
SAS Controller	LSI SAS2208
Cache Protection	MegaRAID CacheVault flash cache protection (optional – LSICVM01 / LSI00297) MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
Warranty	3 years

Package Type :
Carton
Single package size :
26*20*8 CM
Single gross weight :
0.54 KG
Min. order :
1 Piece
Shipping :
Contact supplier to negotiate shipping details
Payments :
Western Union、L/C、T/T、MoneyGram、D/A、D/P
Returns & Refunds :
Returns & refunds accept

Inquire Now

Product Details

LSI SAS 9266 8i L5-25413-16 LSI00295 6GB/s RAID controller

Key Features

■ Eight Internal 6Gb/s SATA+SAS ports

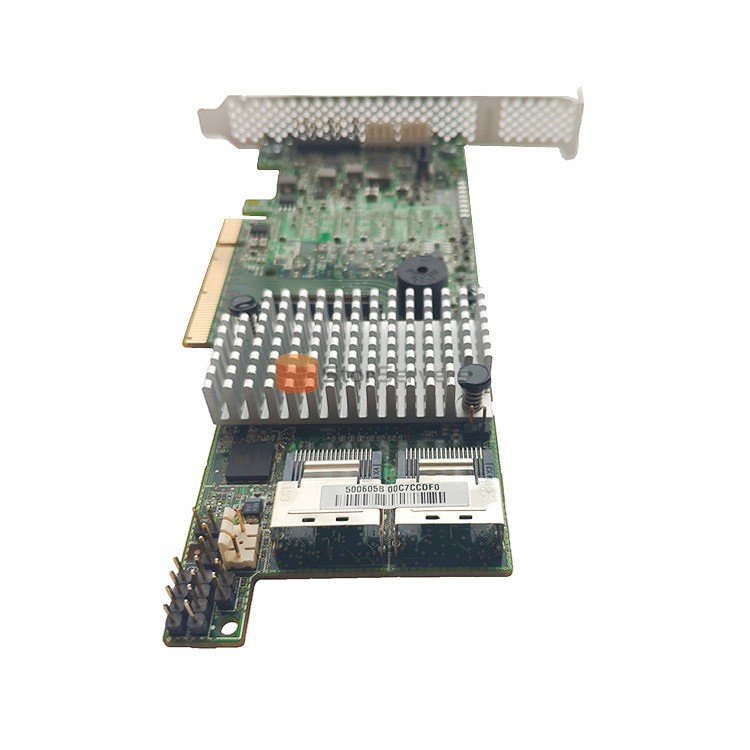

■ Two Mini-SAS internal connector (SFF8087)

■ LSI SAS 2208 Dual- core 6Gb/s ROC

–x2 800MHz PowerPC Processors

■ 1GB DDRIII cache memory

■ RAID Levels 0, 1, 5, 6, 10, 50 and 60

■ Support for NAND flash or BBU cache protection solution

Key Advantages

■ Unmatched RAID performance

■ Connect up to 128 3Gb/s and 6Gb/s SATA and SAS hard drives or SSDs

■ Helps users realize potential of solidstate storage deployments

■ CacheVault technology option for greener, lower total cost cache protection (LSICVM01)

■ Heat-tolerant battery backup option (LSIiBBU09)

Specification

Model	LSl 9266-8i
MPN	L5-25413-16
OPN	LSI00295
Connectors	Two Mini-SAS SFF8087 Internal connector (side mount)
Device Support	Up to 128 SATA and/or SAS hard drives and SSDs
Data Transfer Rates	Up to 6 Gb/s per port
Cache Memory	1 GB 1333MHz DDRIII SDRAM
Host Bus Type	x8 lane PCI Express 2.0 Compliant
l/0 Processor/SAS Controller	LSI SAS 2208 Dual-Core RAID on Chip (ROC)
RAID levels	0，1，5，6，10，50，60
Physical Dimensions	MD2 Low profile (6.6” X 2.536”)
Availability	In Stock

Lead time

Quantity (pieces)	1-10	10-60	>60
Lead time (days)	3	3-5	To be negotiated

About Us

STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!

Our Advantages

FAQ

Q1: What payment method do you accept?

A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
