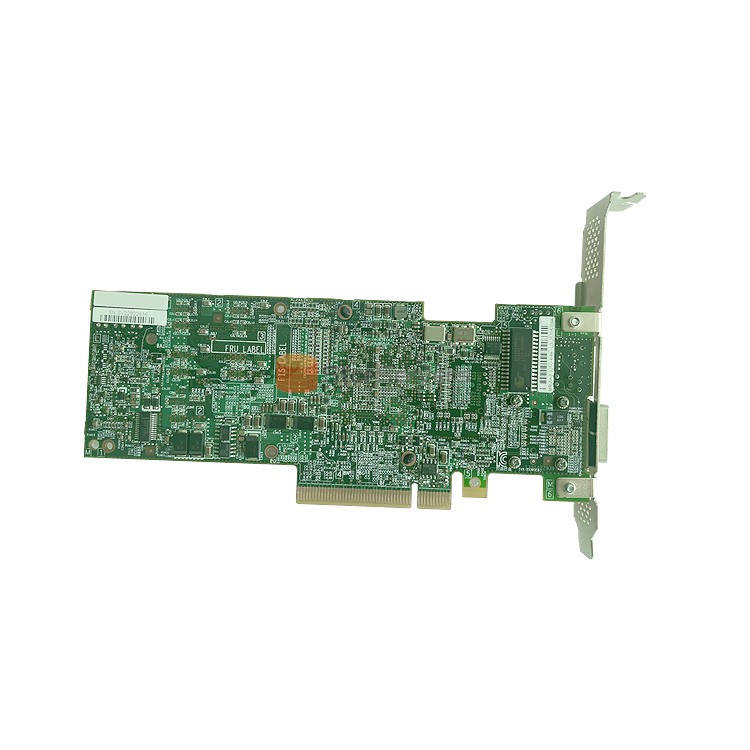

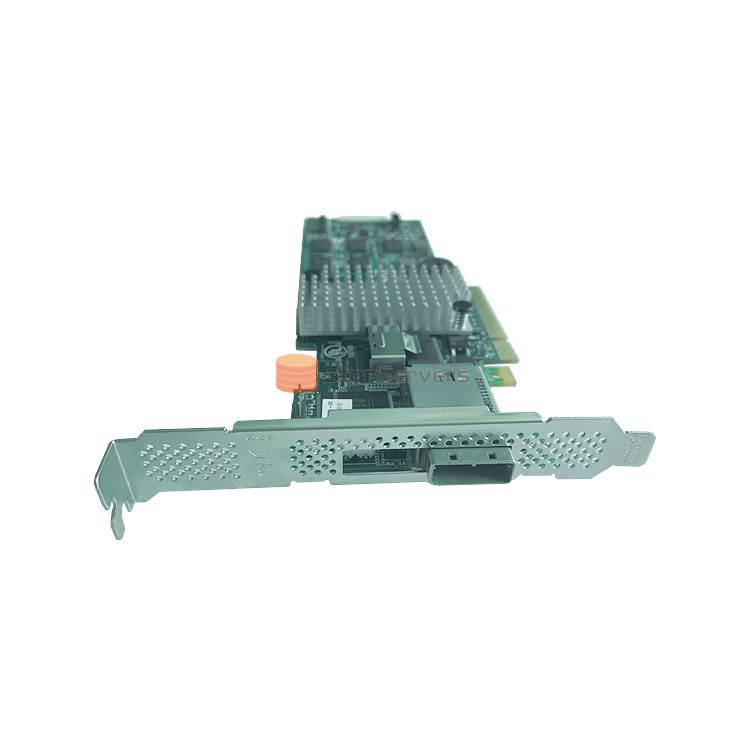

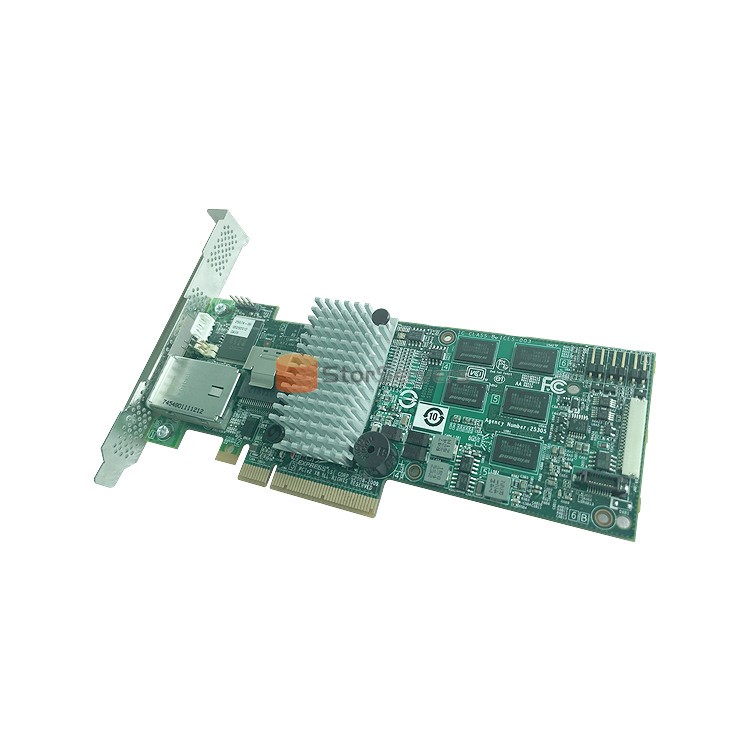

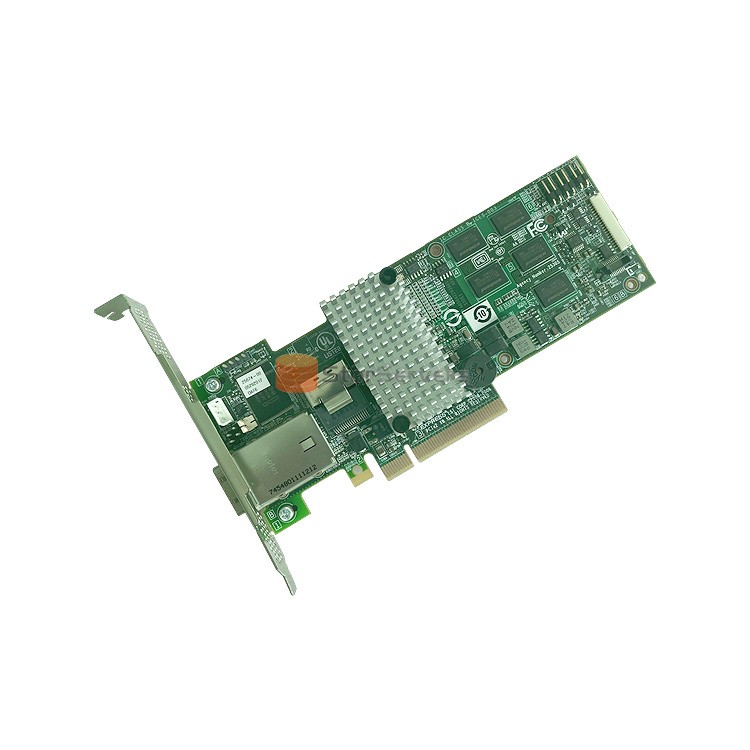

Original LSI 9280-4i4e raid card L5-25305-05 6gb/s mini sas sff8087 sff8088

• Key Features

  ■ Four internal + Four external 6Gb/s SATA+SAS ports

  ■ One Mini-SAS internal connector (SFF-8087)

  ■ One Mini-SAS external connector (SFF-8088)

  ■ LSI SAS 2108 6Gb/s RAID-on-Chip –800MHz PowerPC®

  ■ 512MB 800MHz DDRII cache memory

  ■ Optional battery backup module

  ■ RAID Levels 0, 1, 5 and 6

  ■ RAID Spans 10, 50 and 60

  Key Advantages

  ■ Superior Performance

   –Maximum Reads: 2,875MB/s

   –Maximum Writes: 1,800MB/s

  ■ PCI Express® 2.0 provides faster signaling for high bandwidth applications

  ■ Support for 3Gb/s and 6Gb/s SATA and SAS hard drives

  ■ SafeStore™ Encryption Services for more secure data protection

  Specification

  Model	LSl 9280-4i4e
  MPN	L5-25305-05
  OPN	LSI00209
  Internal Connectors	One Mini-SAS SFF8087 4i internal connector
  External Connectors	One Mini-SAS SFF8088 x4 external connector
  Device Support	Up to 240 SAS and/or SATA hard drives
  Data Transfer Rates	Up to 6 Gb/s per port
  Cache Memory	512MB 800MHz DDR II SDRAM
  Host Bus Type	x8 lane PCI Express 2.0 Compliant
  l/0 Processor/SAS Controller	LSI SAS 2108 RAID-on-Chip (ROC)
  RAID levels	0，1，5，6，10，50，60
  Physical Dimensions	MD2 Low profile (6.6” X 2.536”)
  Availability	In Stock
