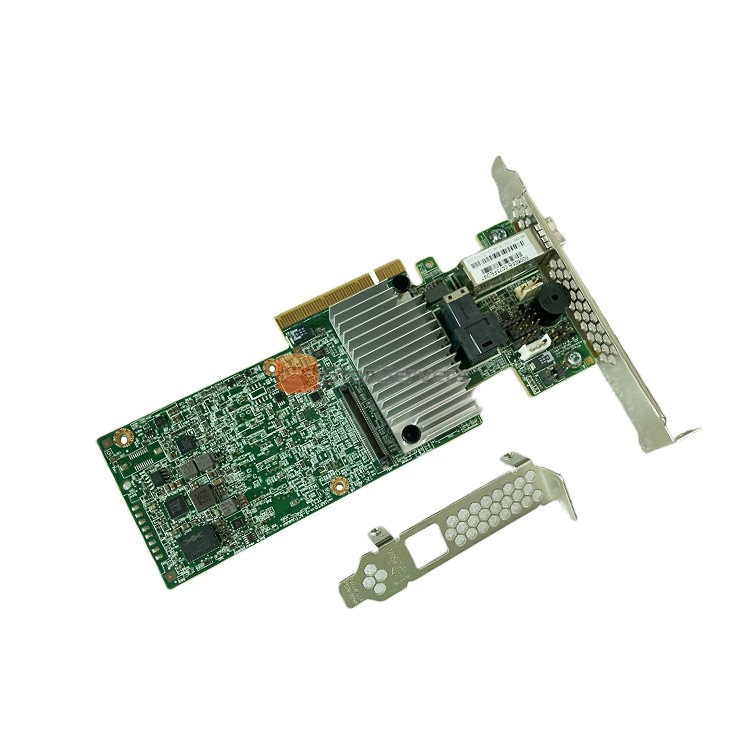

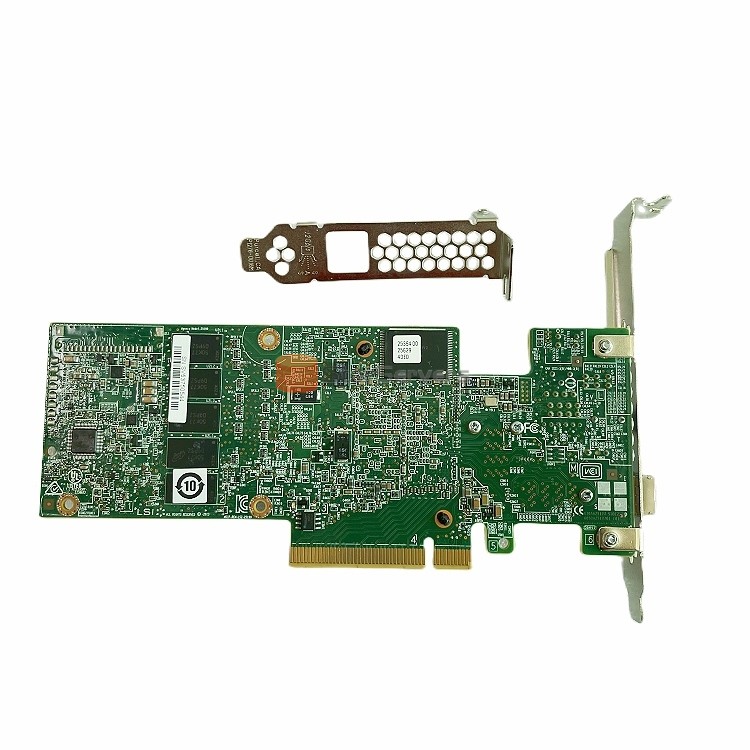

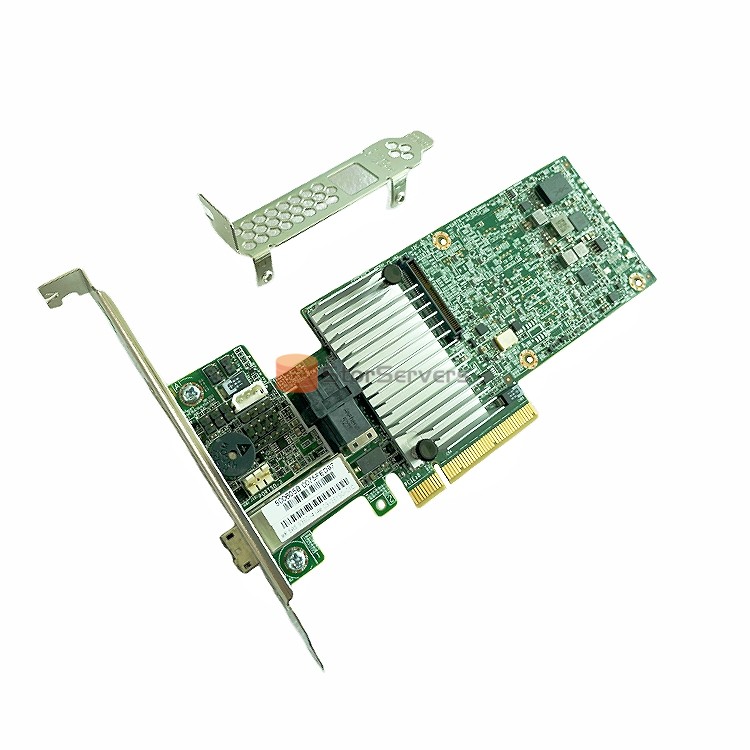

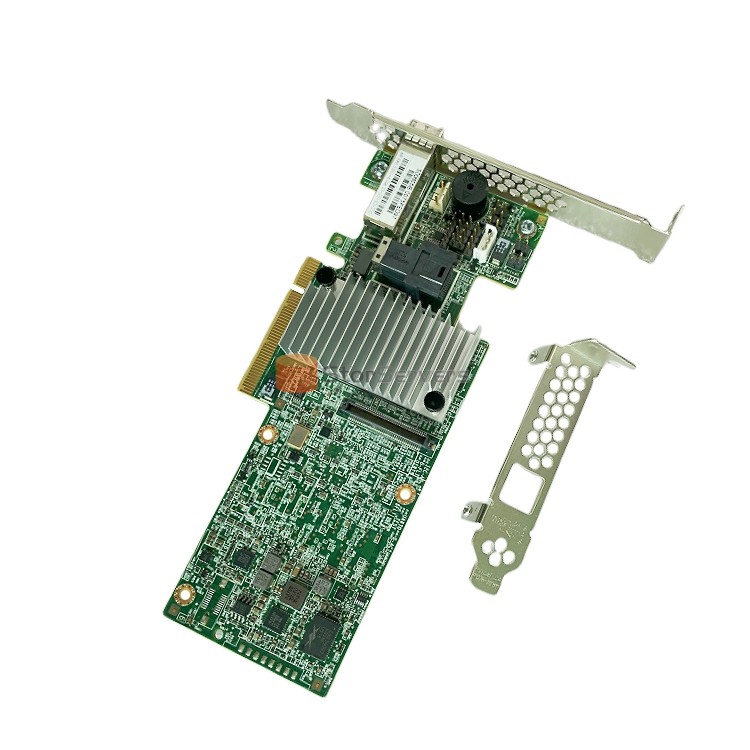

Model | LSI 9380-4i4e |
PN | 05-25190-02 LSI00439 |
SAS Controller | LSI SAS3108 |
Cache Protection
|
Optional CacheVault Flash Module (LSICVM02)
|
Warranty | 3 Year |
Model | LSI 9380-4i4e |
MPN | 05-25190-02 |
OPN | LSI00439 |
Ports | 4 Ports int / 4Ports ext |
Connectors |
One mini-SAS SFF8643 internal connector One mini-SAS SFF8644 external connector |
Data Transfer Rates | Up to 12 Gb/s per port |
Cache Memory |
1GB 1866MHz DDRIII SDRAM |
Host Bus Type | x8 lane PCI Express 3.0 compliant |
l/0 Processor/SAS Controller | LSI SAS3108 |
RAID levels | 0, 1, 5, 6,10, 50 and 60 |
Physical Dimensions |
MD2 Low profile (6.6” X 2.536”) |
Warranty | 3 years |
Availability |
In Stock |
STOR TECHNOLOGY LIMITED, Ltd founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcom!
