Original LSI 9266-4i raid card L5-25413-15 LSI00305 sas control card Megaraid sff8087

Original LSI 9266-4i raid card L5-25413-15 LSI00305 sas control card Megaraid sff8087

High Performance 6Gb/s PCI Express SATA+SAS RAID Controller

Model	LSI 9266-4i
Part Number	L5-25413-15 LSI00305
SAS Controller	LSI SAS2208
Cache Protection	MegaRAID CacheVault flash cache protection (optional – LSICVM01 / LSI00297) MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
Warranty	3 years

Inquire Now

Product Details

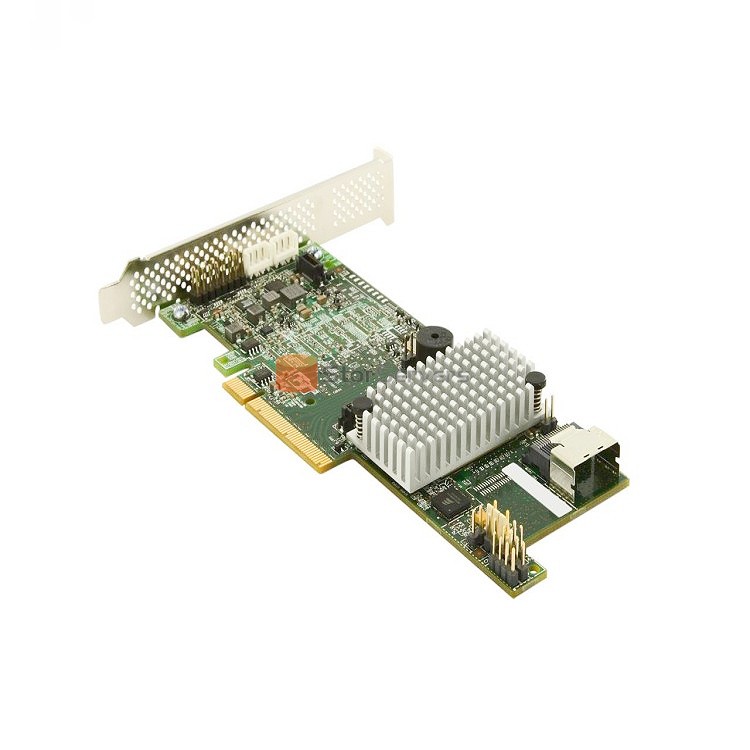

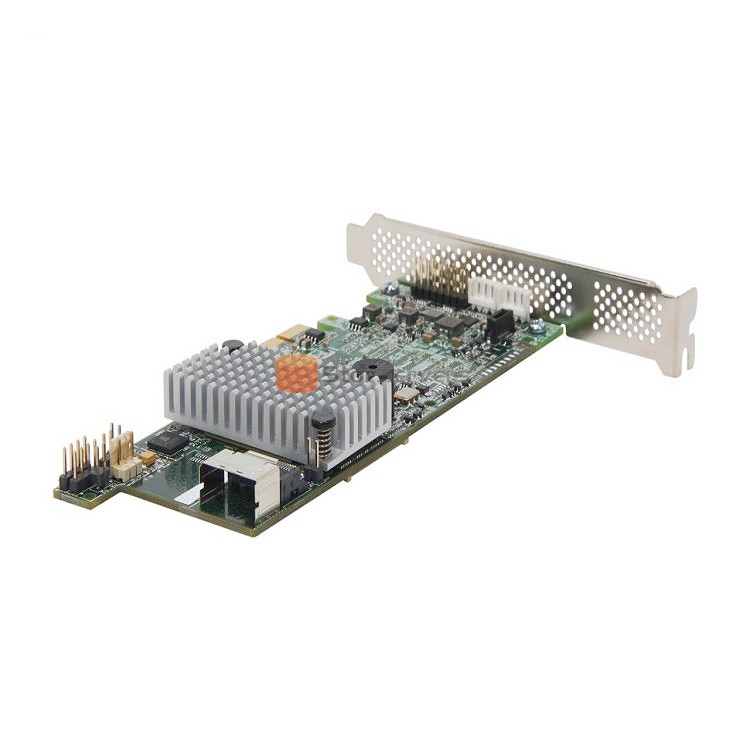

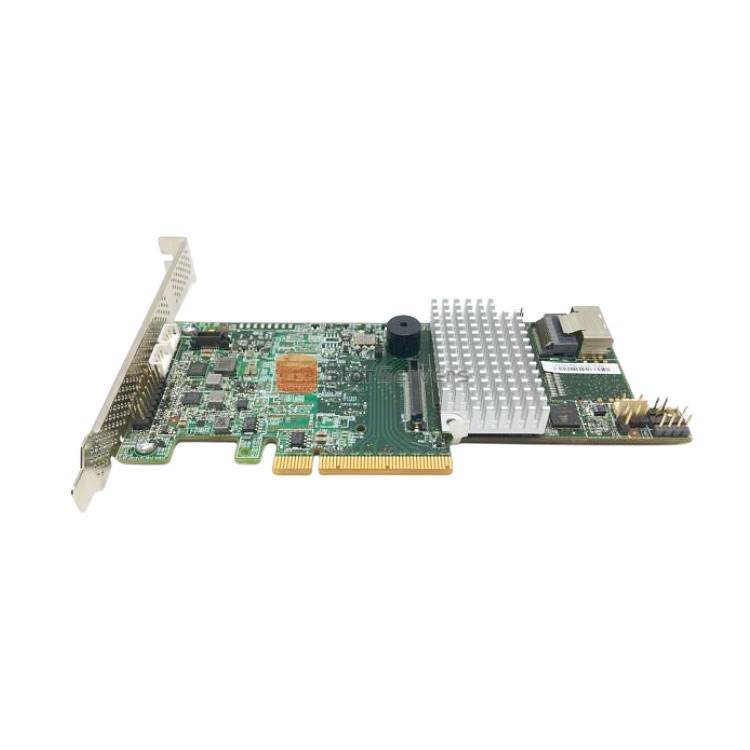

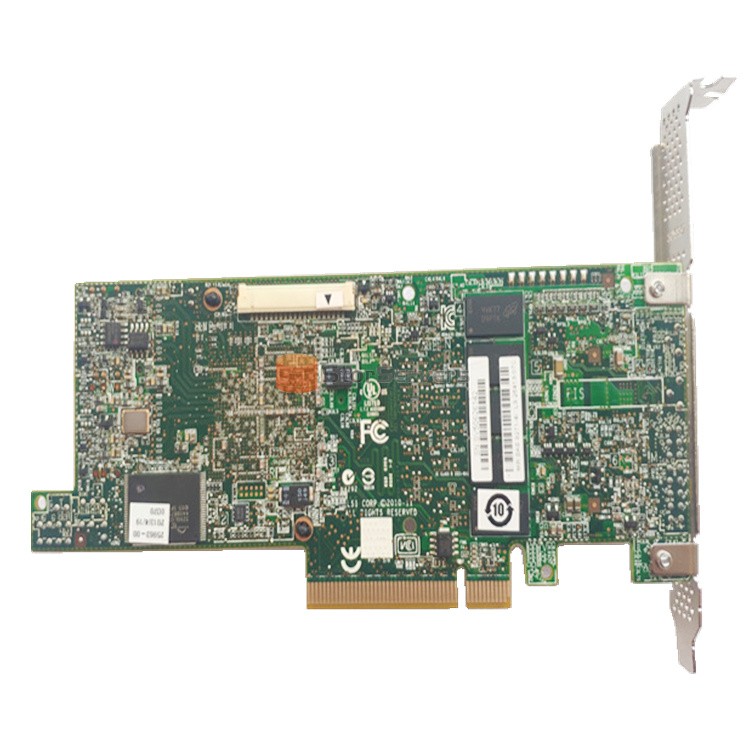

LSI SAS 9266-4i L5-25413-15 LSI00305 6GB/s RAID CARD

Key Features

■ Four Internal 6Gb/s SATA+SAS ports

■ One Mini-SAS internal connector (SFF8087)

■ LSI SAS 2208 Dual- core 6Gb/s ROC

–x2 800MHz PowerPC Processors

■ 1GB DDRIII cache memory

■ RAID Levels 0, 1, 5, 6, 10, 50 and 60

■ Support for NAND flash or BBU cache protection solution

Key Advantages

■ Unmatched RAID performance

■ Connect up to 128 3Gb/s and 6Gb/s SATA and SAS hard drives or SSDs

■ Helps users realize potential of solidstate storage deployments

■ CacheVault technology option for greener, lower total cost cache protection (LSICVM01)

■ Heat-tolerant battery backup option (LSIiBBU09)

Specification

Model	LSl 9266-4i
MPN	L5-25413-15
OPN	LSI00305
Connectors	One Mini-SAS SFF8087 Internal connector (side mount)
Device Support	Up to 128 SATA and/or SAS hard drives and SSDs
Data Transfer Rates	Up to 6 Gb/s per port
Cache Memory	1 GB 1333MHz DDRIII SDRAM
Host Bus Type	x8 lane PCI Express 2.0 Compliant
l/0 Processor/SAS Controller	LSI SAS 2208 Dual-Core RAID on Chip (ROC)
RAID levels	0，1，5，6，10，50，60
Physical Dimensions	MD2 Low profile (6.6” X 2.536”)
Availability	In Stock
