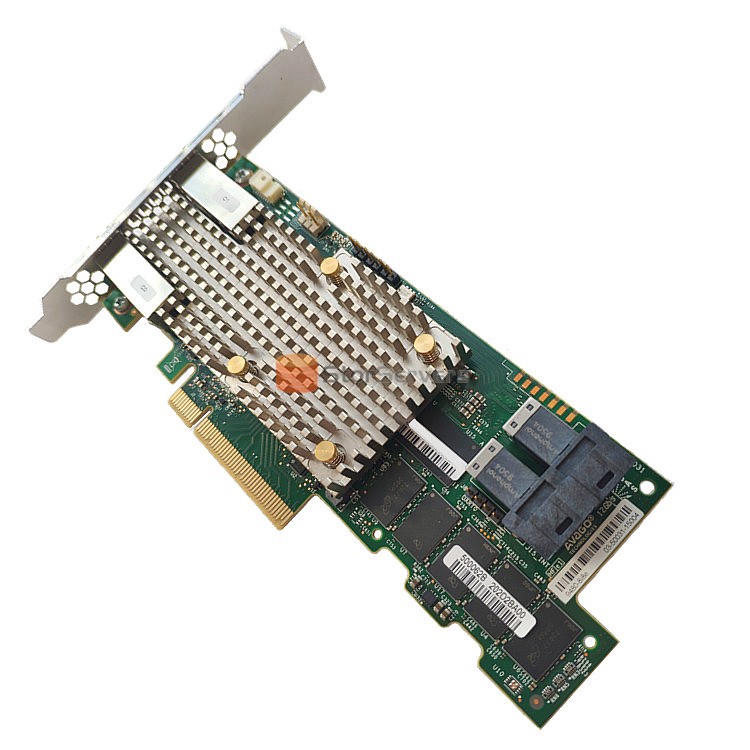

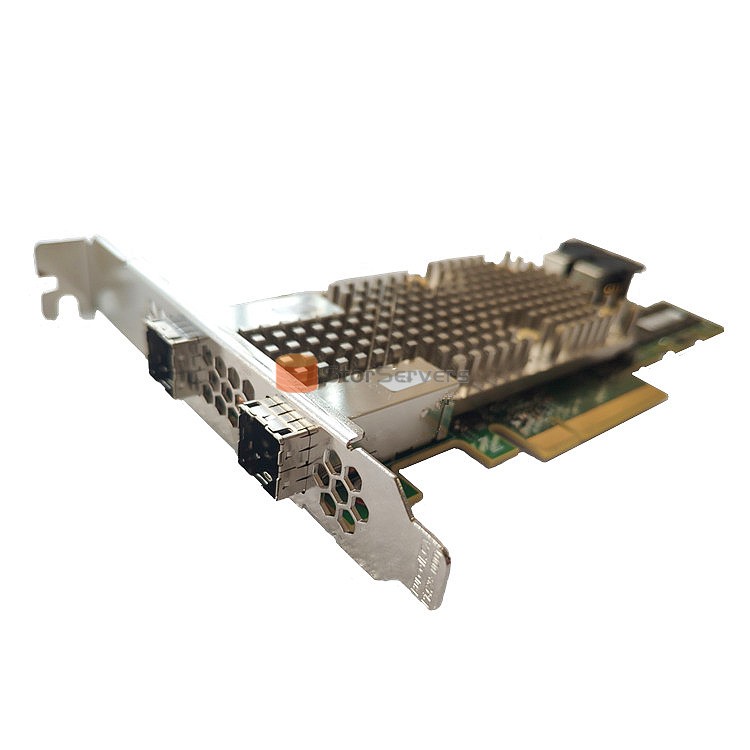

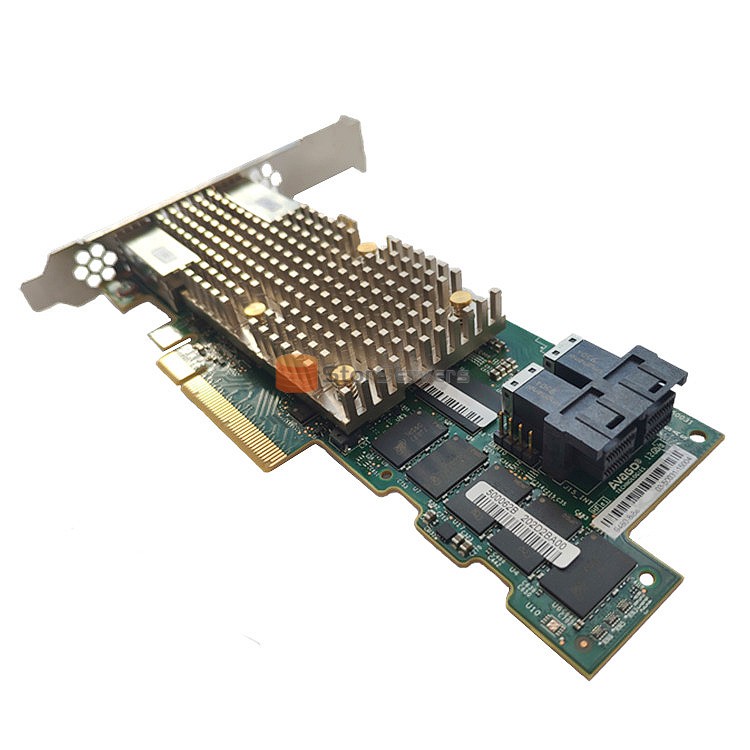

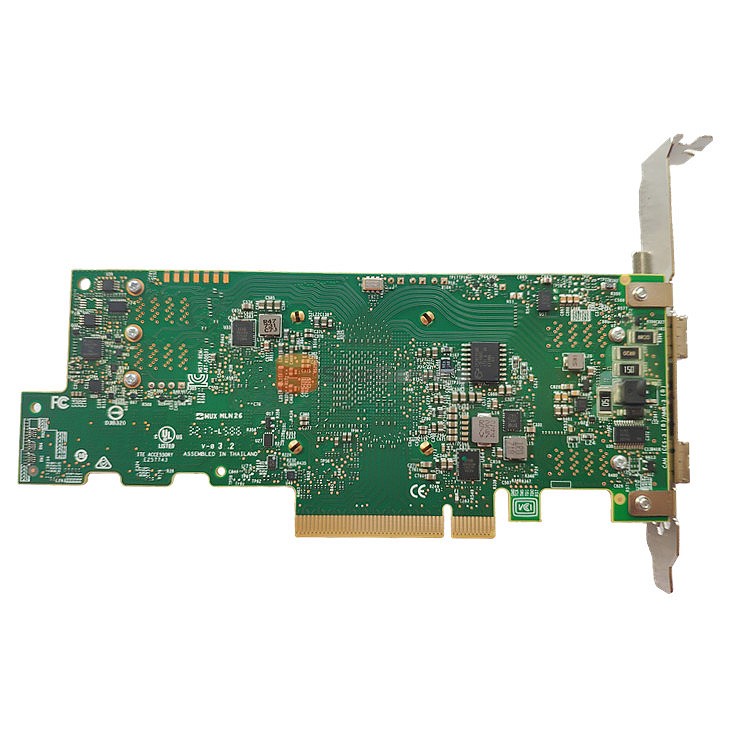

Original LSI 9480-8i8e 05-50031-00 megaraid SAS, SATA, NVMe PCIe RAID Controller 12gb/s

Original LSI 9480-8i8e 05-50031-00 megaraid SAS, SATA, NVMe PCIe RAID Controller 12gb/s

Ｎew and Original LSI cards with competitive price

Model	LSI 9480-8i8e
PN	05-50031-00
I/O	SAS3516
Cache Protection	CacheVault CVPM05 (05-50039-00)
Warranty	3 Years

Package Type :
Carton
Single package size :
26*20*8 CM
Single gross weight :
0.54 KG
Min. order :
1 Piece
Shipping :
Contact supplier to negotiate shipping details
Payments :
Western Union、L/C、T/T、MoneyGram、D/A、D/P
Returns & Refunds :
Returns & refunds accept

Inquire Now

Product Details

LSI 9480-8i8e 05-50031-00 Raid Controller

Applications

• High-port count SAS/SATA/NVMe controllers for direct-attached highconnectivity applications

• Tri-Mode connectivity enabling maximum data center flexibility

• Flexible solutions for cloud computing

• External storage requiring highconnectivity SAS/SATA interface for host or drive side connect

Key Features

• Tri-Mode storage interface ports

− SFF-8680 bay

− x1 SAS

− x1 SATA

− x2 SAS (multi-link)

− Two x1 SAS (dual port using MPIO)

− SFF-8639 (U.2) bay

− x2, x4 NVMe

• Supports 12, 6, and 3 Gb/s SAS and 6 and 3 Gb/s SATA data transfer rates

• Up to 8 storage interface PCIe links. Each link supports x4 or x2* link widths up to 8.0 GT/s (PCIe 3.0) per lane

• SFF-9402 compliant, connector pin-out

• SFF-8485 compliant, SGPIO

• RAID levels 0, 1, 5,6,10, 50 and 60

• CacheVault™ flash back-up at power fail

− Supports bad block management

• PCIe 3.1 host interface

− Supports x8, x4, x2, and x1 PCIe lanes at a transfer rate up to 8.0 GT/s per lane, full duplex

− Lane and polarity reversal − Variable PCIe bandwidth negotiation

Specification

Model	LSI 9480-8i8e
Ports	8 internal / 8 external
PN	05-50031-00
Connectors	Two (x4) SFF-8643, Two (x4) SFF-8644
Storage Interface Support	SAS,SATA,NVMe(PCle)
Max NVMe Direct Attach Devices	Two x4, Four x2
Max Devices Per Controller	SAS/SATA: 240 NVMe: 24
I/O Processor/ SAS Controller	SAS3516
Cache Memory	4 GB 2133 MHz DDR4 SDRAM
Cache Protection	CacheVault CVPM05 05-50039-00
Host Bus Type	PCle 3.1 x8
Key RAID Data Protection Features	RAID 0, 1, 5,6,10, 50 and 60
Typical Power	17.71W
Physical Dimensions	6.600 in.x 2.712 in(167.65 mm x68.90 mm)
Availability	In Stock

Lead time

Quantity (pieces)	1-10	10-60	>60
Lead time (days)	3	3-5	To be negotiated
