Original LSI 9361-4i 05-25420-10 raid controller card Megaraid sff8643

Original LSI 9361-4i 05-25420-10 raid controller card Megaraid sff8643

High Performance 12Gb/s PCI Express SATA+SAS RAID Controller

Model	LSI 9361-4i
Part Number	05-25420-10 LSI00415
SAS Controller	LSI SAS 3108 dual core RAID on Chip (ROC)
Cache Protection	Optional CacheVault Flash Module (LSICVM02)
Warranty	3 year

Inquire Now

Product Details

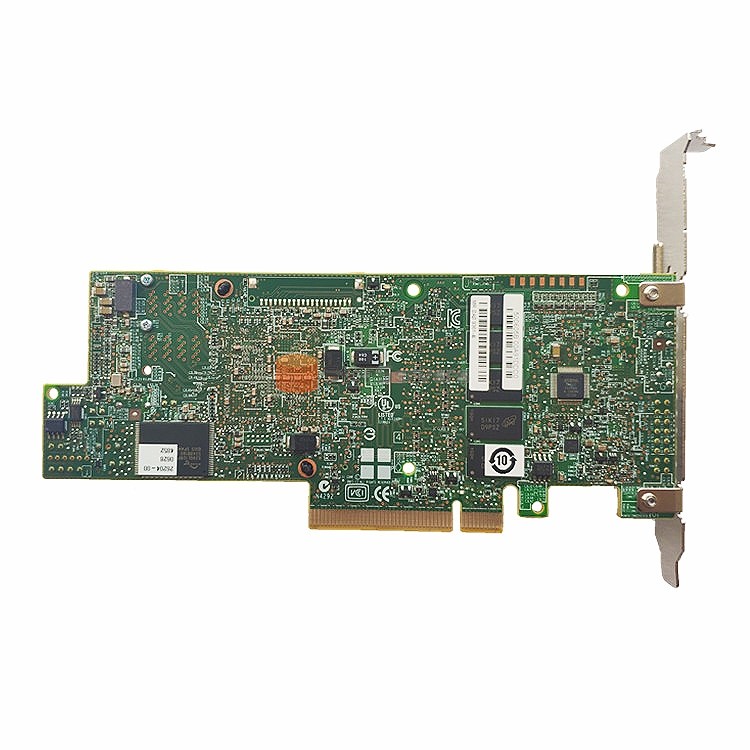

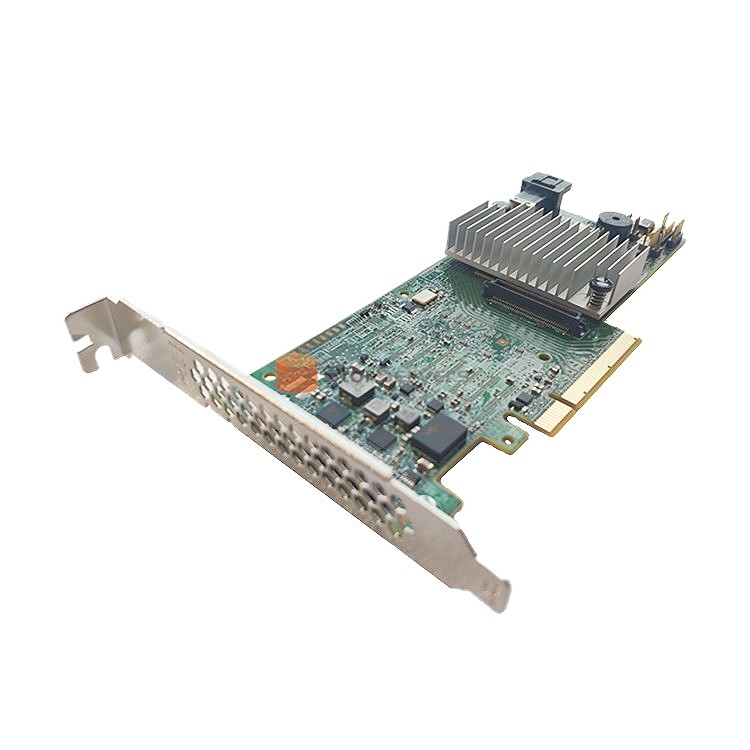

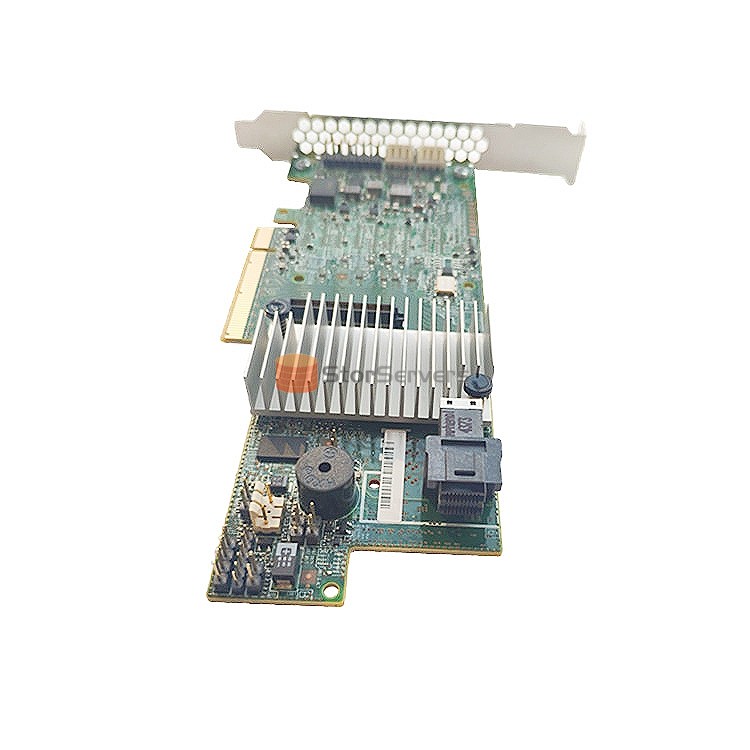

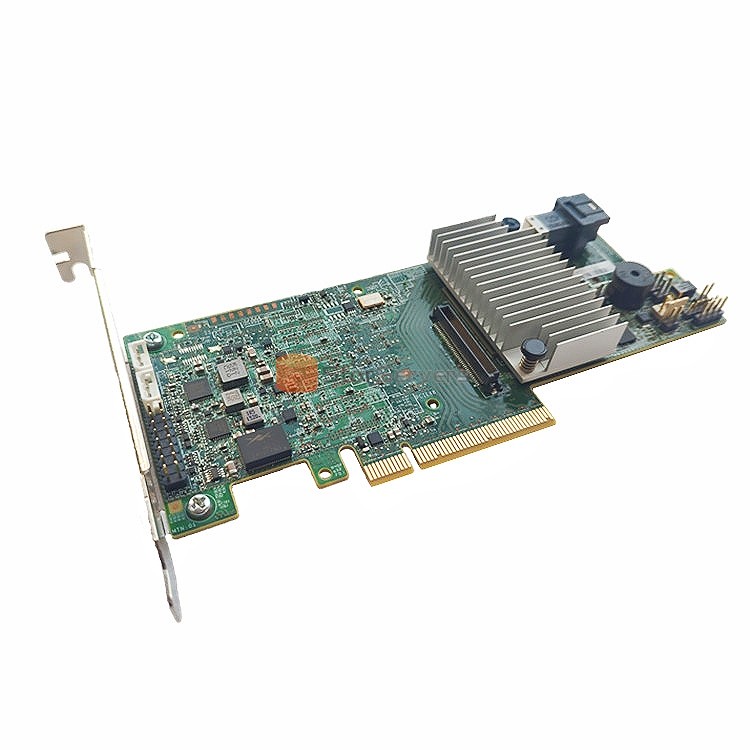

LSI 9361-4i 05-25420-10 RAID CARD

Key Features

■ High performance 12Gb/s data transfer rates

■ Four internal 12Gb/s SATA+SAS ports

■ One mini-SAS SFF8643 internal connector (horizontal mount)

■ LSI SAS 3108: 1.2GHz PowerPC® 476 dual core 12Gb/s ROC

■ PCI Express 3.0 host interface

■ 1GB DDRIII cache memory

■ RAID levels 0, 1, 5, 6, 10, 50, and 60

■ Support for CacheVault® flash cache protection

Key Advantages

■ 12Gb/s solutions accelerate performance for next-generation datacenters, web and cloud

■ Delivers enterprise-class data protection and security

■ Preserves investment in 6Gb/s and 3Gb/s drives

■ Support for Advanced Software options

■ Connect up to 128 3Gb/s, 6Gb/s, or 12Gb/s SATA and SAS devices

Specification

Model	LSl 9361-4i
MPN	05-25420-10 LSI00415
Connectors	One mini-SAS SFF8643 internal connector
Device Support	Up to 128 SAS and/or SATA devices
Data Transfer Rates	Up to 12 Gb/s per port
Host Bus Type	x8 lane PCI Express 3.0 compliant
l/0 Processor/SAS Controller	SAS3108 12 Gb/s dual-core ROC
Cache Memory Options	1GB 1866MHz DDRIII SDRAM
RAID levels	0,1,5, 6,10,50, and 60
Availability	In Stock
