Brandnew LSI Megaraid 9750-4i LSI00215 LSI00216 raid controller card sff8087 6gb/s

Brandnew LSI Megaraid 9750-4i LSI00215 LSI00216 raid controller card sff8087 6gb/s

Ｎew and Original LSI cards with competitive price.

Model	LSI 9750-4I
PN	LSI00215 LSI00216
SAS Controller	LSI SAS2108
Battery Backup Unit	LSI iBBU07
Warranty	3 Year

Inquire Now

Product Details

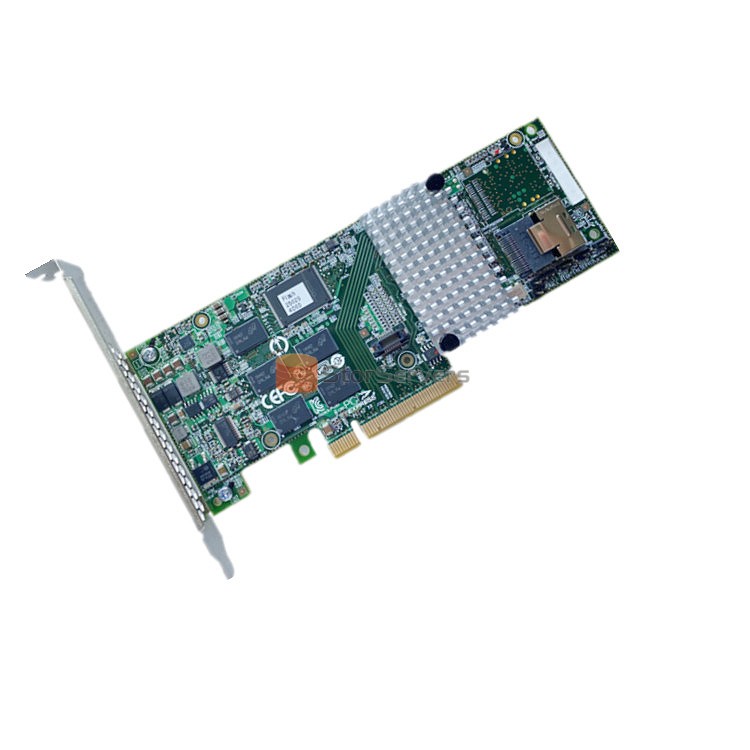

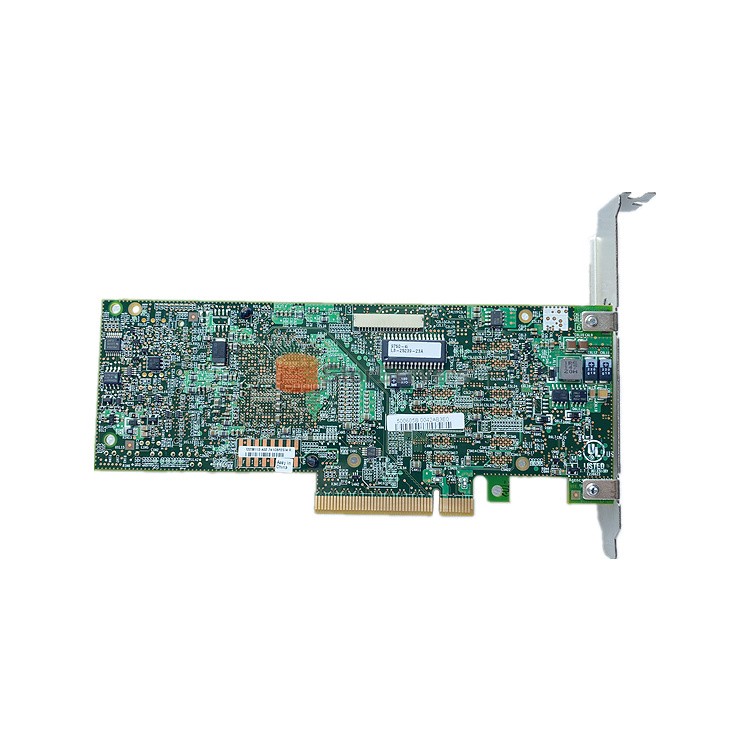

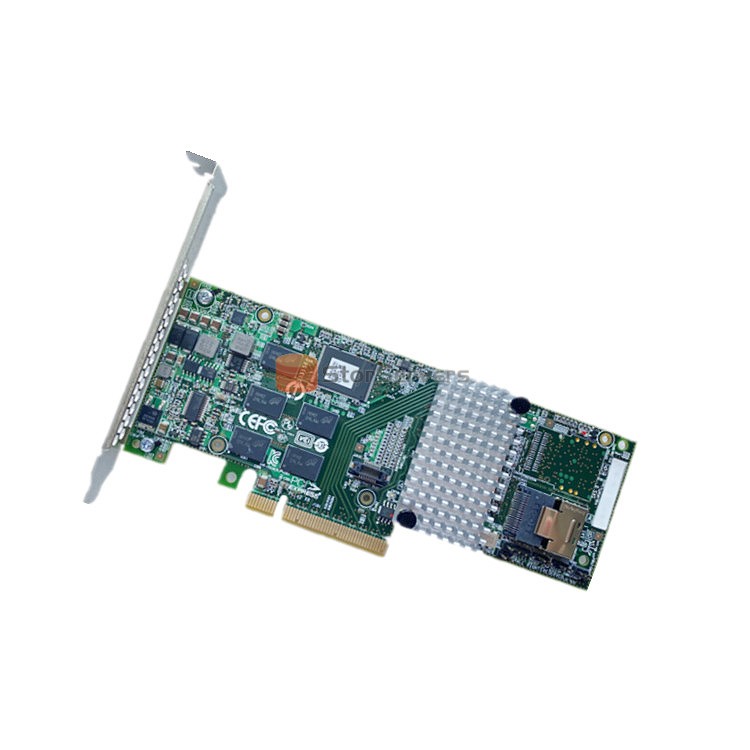

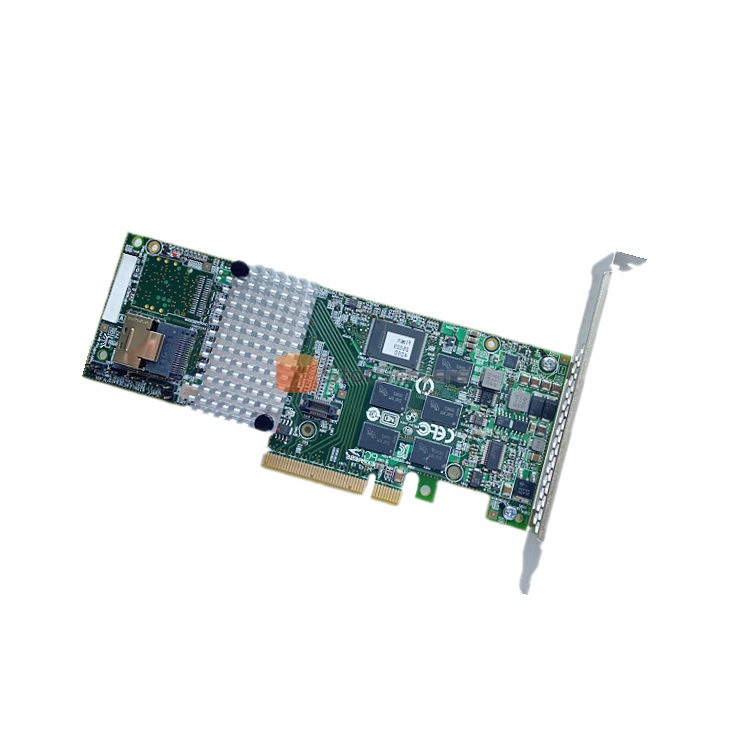

LSI SAS 9750-4i Megaraid 6GB/s RAID CARD

Key Features

■ Four internal 6Gb/s SATA+SAS ports

■ One Mini-SAS internal connector (SFF-8087)

■ RAID levels 0, 1, 5, 6,10, 50 and Single Disk

■ LSISAS2108 6Gb/s RAID-on-Chip – 800MHz PowerPC®

■ 512MB 800MHz DDRII cache memory

■ Optional battery backup module with StorSave BBU

■ Support for up to 96 SATA or SAS physical devices

Key Advantages

■ Superior Performance

— Maximum RAID 5 Reads: 2500MB/s

— Maximum RAID 5 Writes: 1100MB/s

■ PCI Express 2.0 provides faster signaling for high- bandwidth applications

■ Support for 3Gb/s and 6Gb/s, SAS and SATA, HDDs and SSDs

■ StreamFusion+ improves multi-stream read and write performance

Specification

Model	LSl 9750-4i
Single Pack P/N	LSI00216
Kit P/N	LSI00215
Ports	4 Ports int
Connectors	One Mini-SAS SFF-8087 internal connector
Data Transfer Rates	Up to 6 Gb/s per port
Host Bus Type	x8 lane PCI Express 2.0 Compliant
l/0 Processor/SAS Controller	LSISAS2108 RAID-on-Chip (ROC)
RAID levels	0, 1, 5, 6,10, 50 and Single Disk
Brackets	Low-Profile
Warranty	3 years
Availability	In Stock

About Us

STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcom!

Our Advantages

FAQ

Q1: What payment method do you accept?

A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
