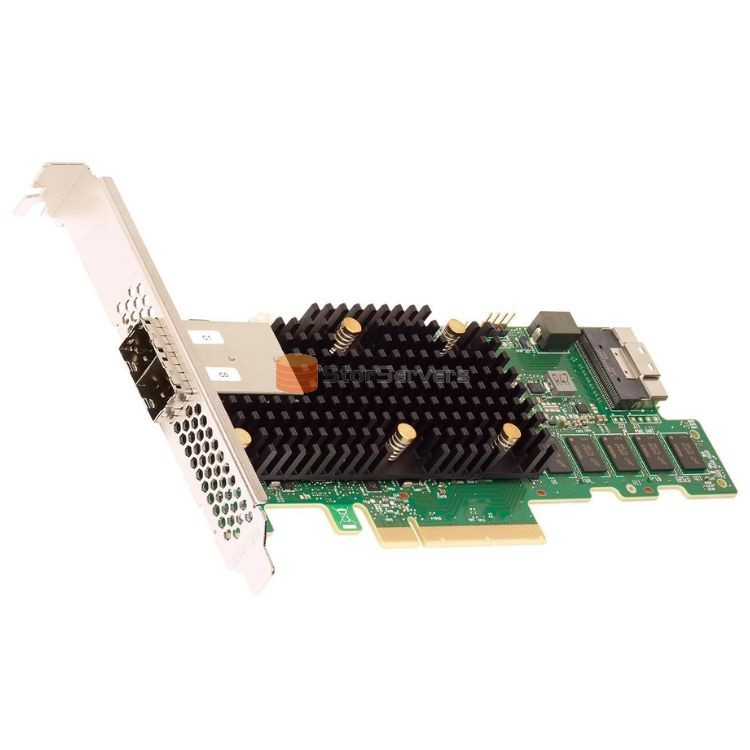

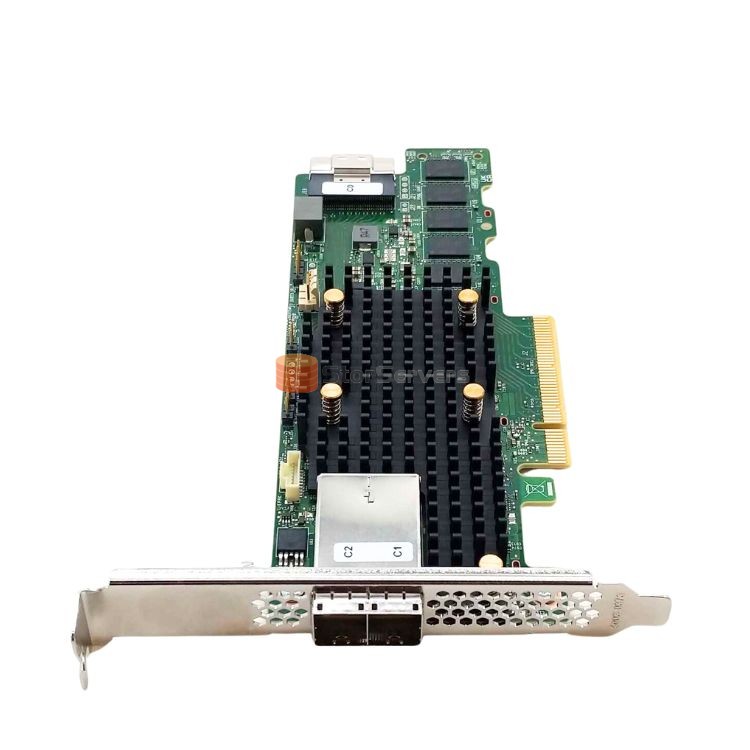

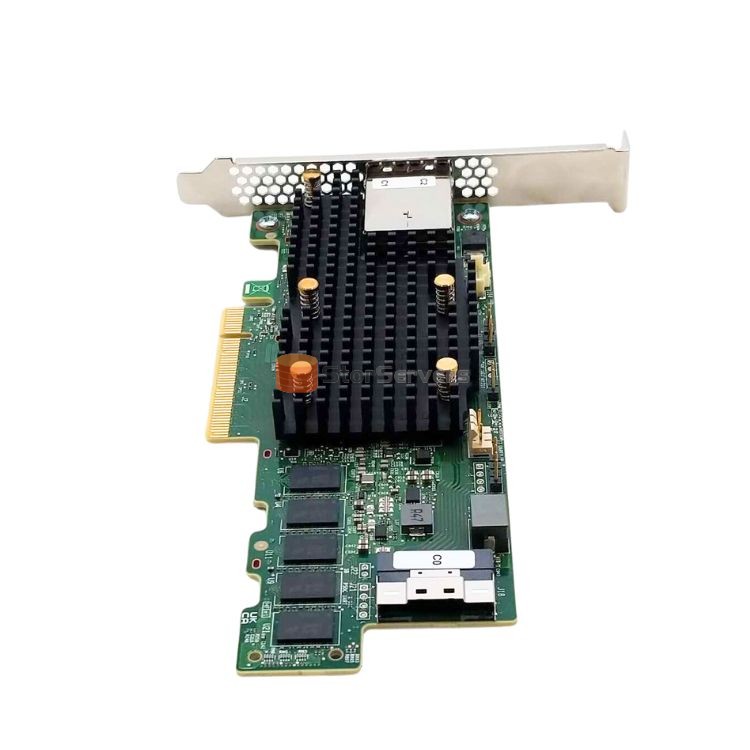

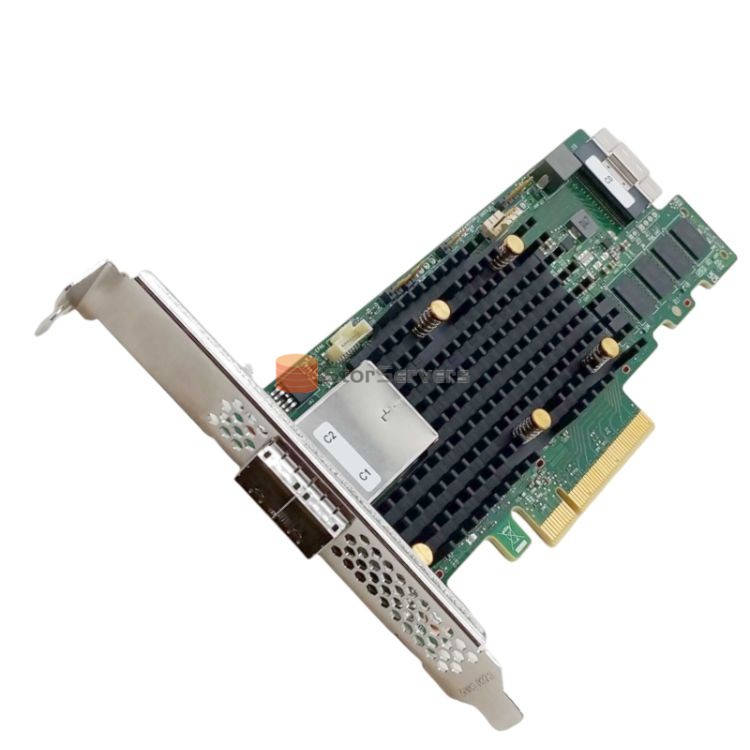

MegaRAID 9580-8i8e storage controller SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) PCIe 4.0 x8

The 9580-8i8e is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, the 9580-8i8e is instrumental in getting the most performance and flexibility out of U.3 backplanes

Raid Features

• Raid Levels 0, 1, 5, And 6

• Raid Spans 10, 50, And 60

• Jbod Mode With R0/1/10 And Jbod For Sds Environments

• Online Capacity Expansion (oce)

• Auto Resume After Loss Of System Power During Array Rebuild Or Oce

• Single Controller Multipathing

• Load Balancing

• Configurable Stripe Size Up To 1 Mb

• Fast Initialization For Quick Array Setup

• Check Consistency For Background Data Integrity

• Ssd Support With Ssd Guard™ Technology

• Patrol Read For Media Scanning And Repairing

• 64 Virtual Drive Support

• Ddf Compliant Configuration On Disk (cod)

• S.m.a.r.t. Support

• Global And Dedicated Hot Spare With Revertible Hot Spare Support:

- Automatic Rebuild

- Enclosure Affinity

- Emergency Sata Hot Spare For Sas Arrays

• Enclosure Management:

- Ses (inband)

- Sgpio (sideband)

- Universal Backplane Management (ubm) Ready

• Databolt Bandwidth Optimizer Technology Support For Compatible Expander-based Enclosures

• Shield State Drive Diagnostic Technology• Megaraid Safestore Software For Sed Key Management
