Original LSI 9460-16i huawie SP460C-M Megaraid SAS, SATA NVMe PCIe RAID card 12gb/s

Original LSI 9460-16i huawie SP460C-M Megaraid SAS, SATA NVMe PCIe RAID card 12gb/s

Ｎew and Original LSI cards with competitive price

Model	LSI 9460-16i
PN	05-50011-00
I/O	SAS3516
Cache Protection	CacheVault CVPM05 (05-50039-00)
Warranty	3 Years

Model :
9460-16i
Part number :
SP460C-M
Package Type :
Carton
Single package size :
26*20*8 CM
Single gross weight :
0.54 KG
Min. order :
1 Piece
Shipping :
Contact supplier to negotiate shipping details
Payments :
Western Union、L/C、T/T、MoneyGram、D/A、D/P
Returns & Refunds :
Returns & refunds accept
Warranty :
3 Years

Inquire Now

Product Details

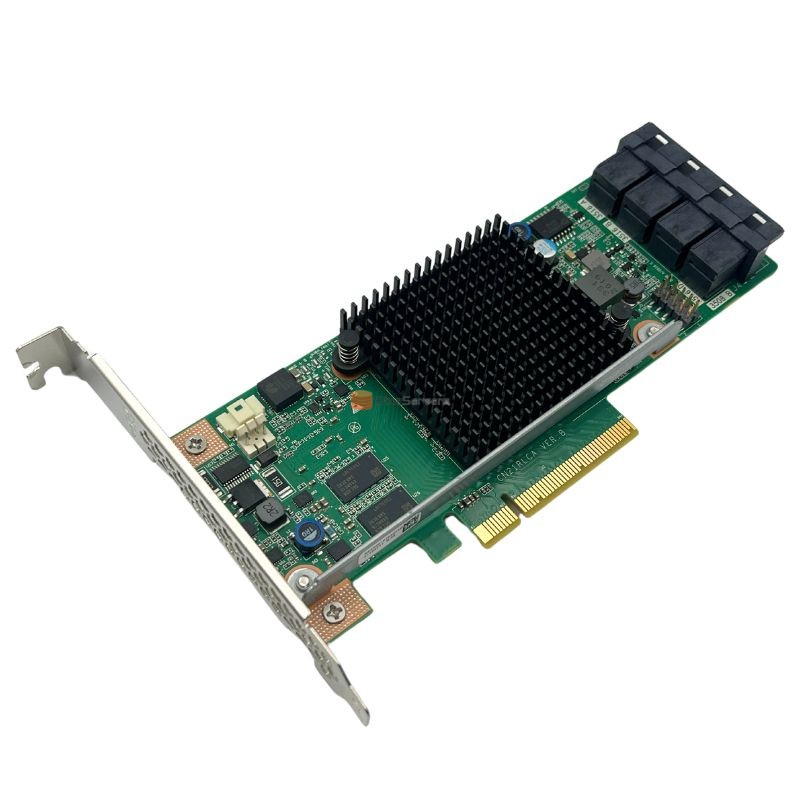

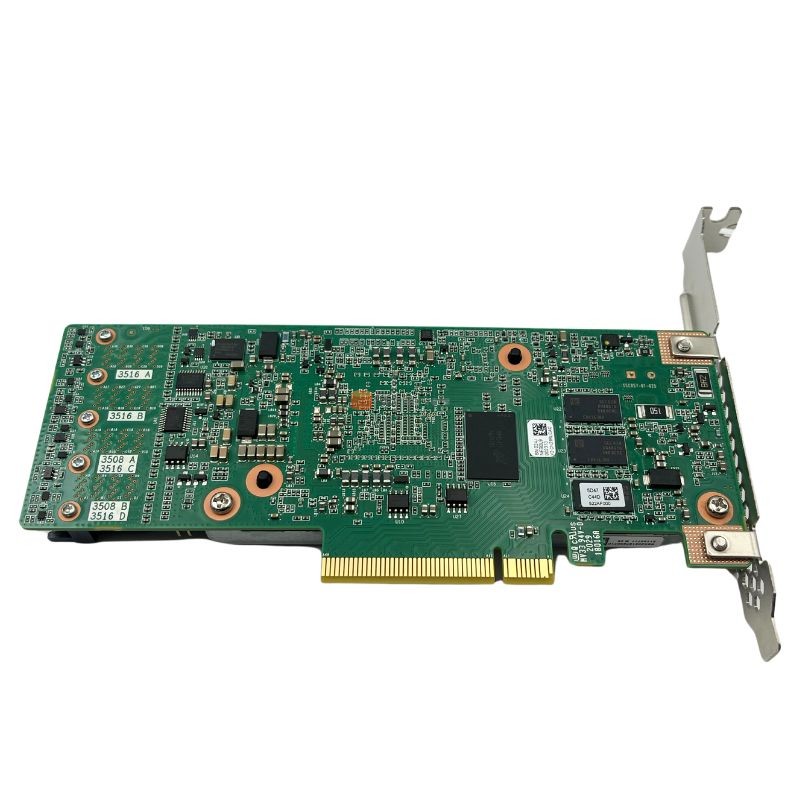

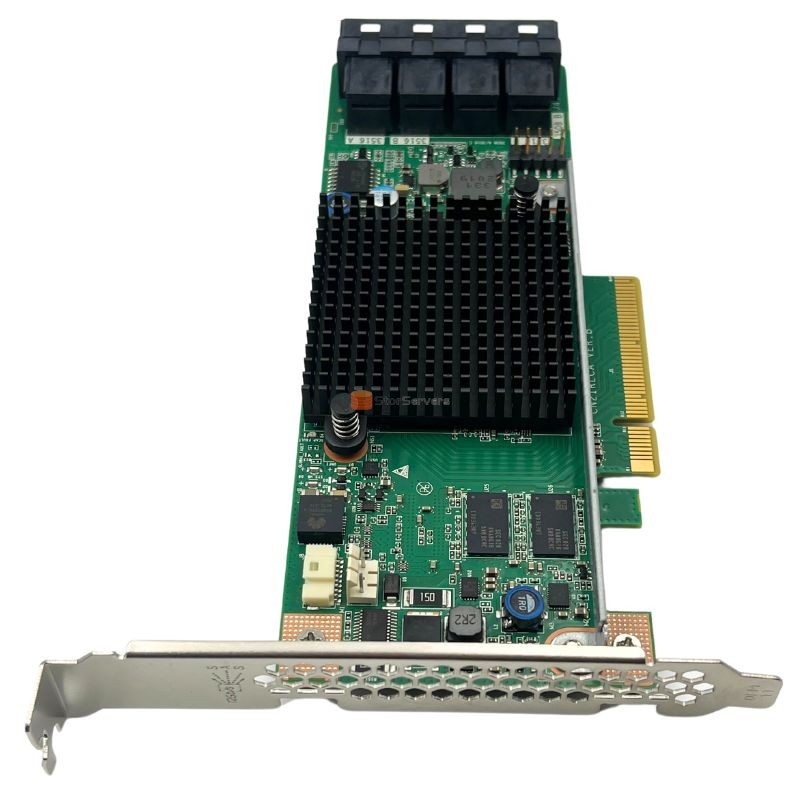

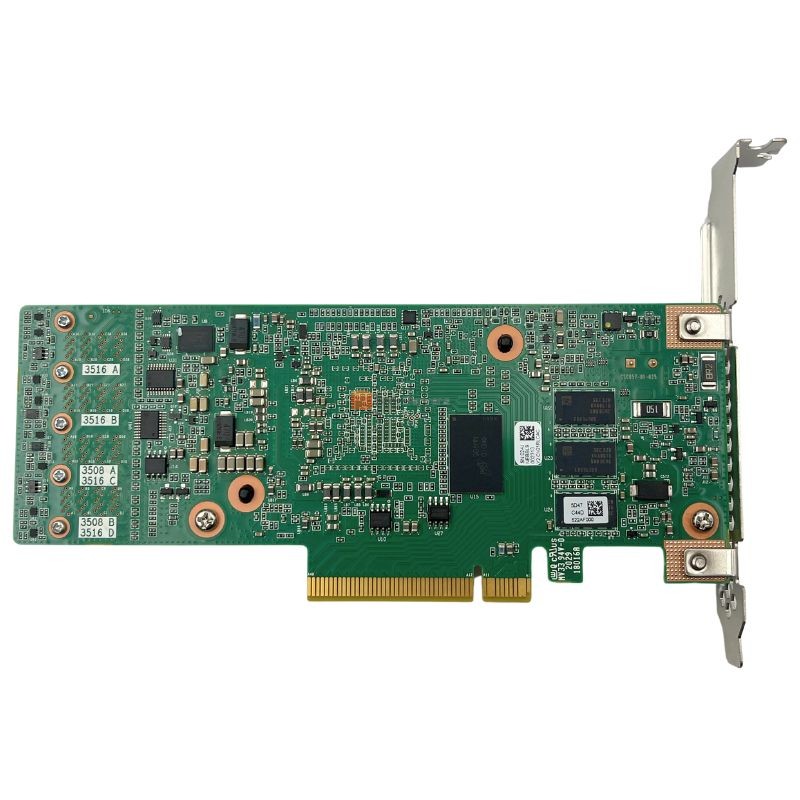

LSI 9460-16i 05-50011-00 Raid Controller Card SP460C-M

Applications

• High-port count SAS/SATA/NVMe controllers for direct-attached highconnectivity applications

• Tri-Mode connectivity enabling maximum data center flexibility

• Flexible solutions for cloud computing

• External storage requiring highconnectivity SAS/SATA interface for host or drive side connect

Key Features

• Tri-Mode storage interface ports

− SFF-8680 bay

− x1 SAS

− x1 SATA

− x2 SAS (multi-link)

− Two x1 SAS (dual port using MPIO)

− SFF-8639 (U.2) bay

− x2, x4 NVMe

• Supports 12, 6, and 3 Gb/s SAS and 6 and 3 Gb/s SATA data transfer rates

• Up to 8 storage interface PCIe links. Each link supports x4 or x2* link widths up to 8.0 GT/s (PCIe 3.0) per lane

• SFF-9402 compliant, connector pin-out

• SFF-8485 compliant, SGPIO

• RAID levels 0, 1, 5,6,10, 50 and 60

• CacheVault™ flash back-up at power fail

− Supports bad block management

• PCIe 3.1 host interface

− Supports x8, x4, x2, and x1 PCIe lanes at a transfer rate up to 8.0 GT/s per lane, full duplex

− Lane and polarity reversal − Variable PCIe bandwidth negotiation

Specification

Model	LSI 9460-16i
Ports	16 internal
PN	05-50011-00
Connectors	Four (x4) SFF-8643
Storage Interface Support	SAS,SATA,NVMe(PCle)
Max NVMe Direct Attach Devices	Four x4, Eight x2
Max Devices Per Controller	SAS/SATA: 240 NVMe: 24
I/O Processor/ SAS Controller	SAS3516
Cache Memory	4 GB 2133 MHz DDR4 SDRAM
Cache Protection	CacheVault CVPM05 05-50039-00
Host Bus Type	PCle 3.1 x8
Key RAID Data Protection Features	RAID 0, 1, 5,6,10, 50 and 60
Typical Power	17.02W
Physical Dimensions	6.127 in.x 2.712 in(155.65 mm x68.90 mm)
Availability	In Stock

Lead time

Quantity (pieces)	1-10	10-60	>60
Lead time (days)	3	3-5	To be negotiated

About Us

STOR TECHNOLOGY LIMITED, Ltd founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcom!

Our Advantages

FAQ

Q1: What payment method do you accept?

A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
