LSI 9540-8i 05-50134-03 raid card sas sata nvme Storage Adapters

LSI 9540-8i 05-50134-03 raid card sas sata nvme Storage Adapters

12Gb/s SAS/SATA/PCIe (NVMe) Tri-Mode RAID Controller

Model	LSI 9540-8i
PN	05-50134-03
I/O	SAS3808
Cache Protection	--
Warranty	3 Years

Inquire Now

Product Details

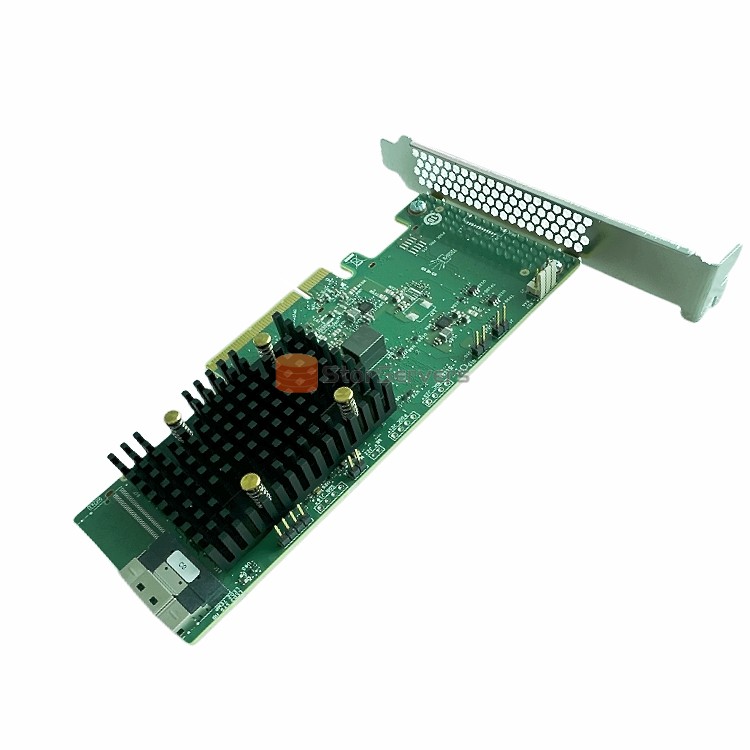

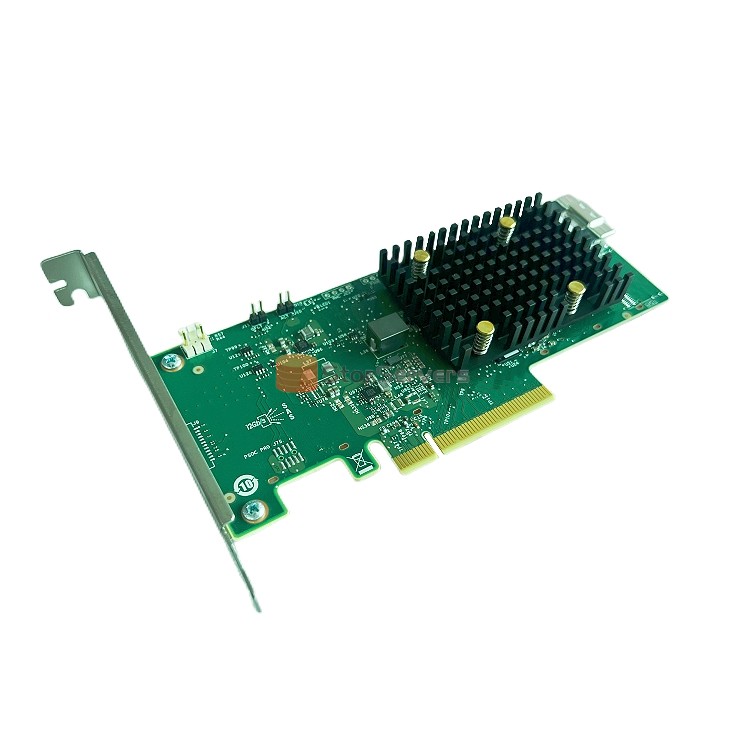

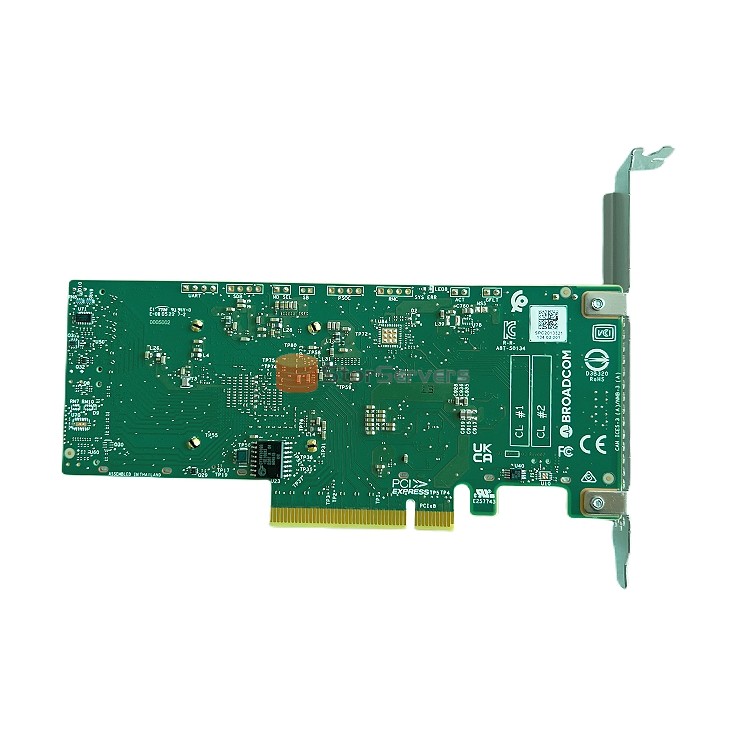

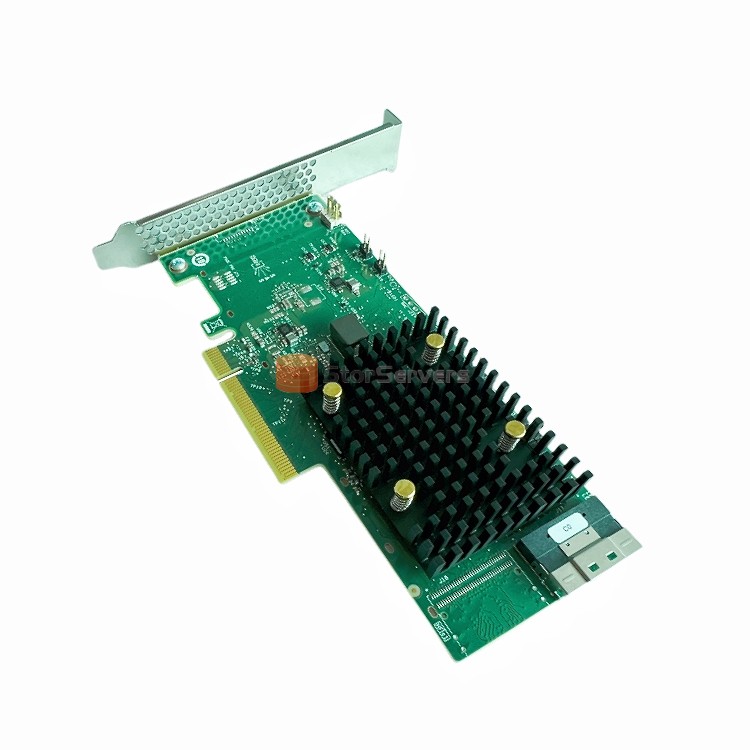

LSI 9540-8i 05-50134-03 raid card for server

Key Features

• Tri-Mode Storage Interface

− 12Gb/s SAS

− 6Gb/s SATA

− Gen 4.0 PCIe (NVMe)

• Hardware Secure Boot

• Universal Backplane Management (UBM) ready

• RAID levels 0, 00, 1, 5, 6, 10, 50, and 60

− 13,700 MB/s (RAID 256K Seq Rd)

− 3M IOPs (4K RAID RR)

− 240K RAID 5 IOPs (4K RW)

• MegaRAID SafeStore™ Software for SED Key Management

• CacheVault™ flash backup

• x8 PCIe Gen 4.0 Host Interface

− Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 16.0GT/s per lane, full duplex

− Lane and polarity reversal

• SFF-9402 Compliant Connector Pinout

• Up to 240 SAS/SATA devices

• Up to 32 NVMe devices

• Form Factor Friendly Cable Exit

Specification

Model	LSI 9540-8i
Ports	8 internal
PN	05-50134-03
Connectors	One x8 SFF-8654
Storage Interface	12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
I/O Processor/ SAS Controller	SAS3808
RAID Levels	0, 00, 1, 10
Max Devices Per Controller	SAS/SATA: 63 NVMe: 4
Host Interface	x8 PCIe Gen 4.0
Cache Size	--
Cache Protection	--
Typical Power	6.0W
Physical Dimensions	6.127 in. × 2.712 in.

Lead time

Quantity (pieces)	1-10	10-60	>60
Lead time (days)	3	3-5	To be negotiated
