LSI 9361-8i 2G 05-25420-17 raid card sas controller Megaraid sff8643 12gb/s

LSI 9361-8i 2G 05-25420-17 raid card sas controller Megaraid sff8643 12gb/s

A new enterprise feature employed by the 12 Gb/s MegaRAID SAS controllers is advanced drive diagnostic technology.

Model	LSI 9361 8i 2G
Part Number	05-25420-17 03-25420-08 LSI00462
SAS Controller	LSI SAS3108
Cache Protection	Optional CacheVault Flash Module (LSICVM02)
Warranty	3 year

Package Type :
Carton
Single package size :
26*20*8 CM
Single gross weight :
0.54 KG
Min. order :
1 Piece
Shipping :
Contact supplier to negotiate shipping details
Payments :
Western Union、L/C、T/T、MoneyGram、D/A、D/P
Returns & Refunds :
Returns & refunds accept

Inquire Now

Product Details

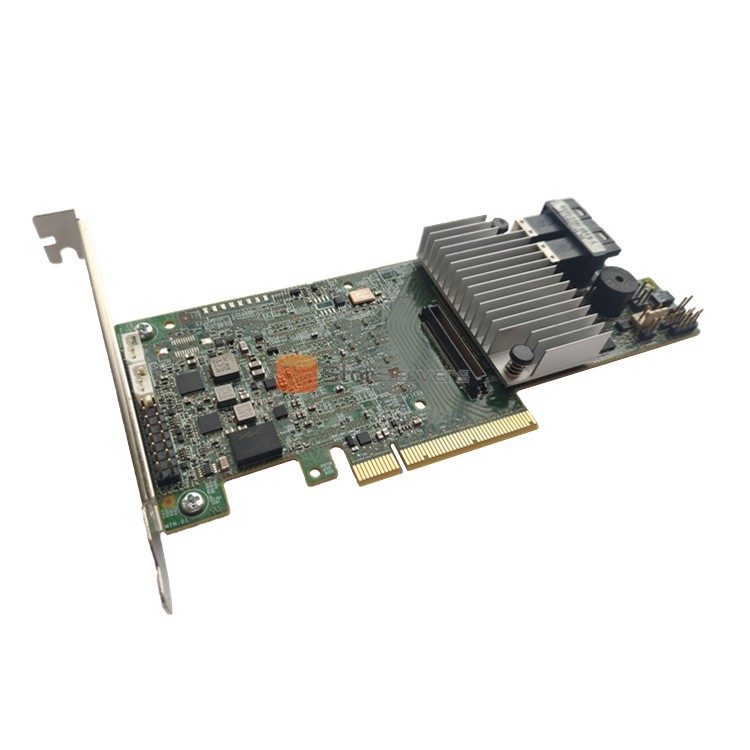

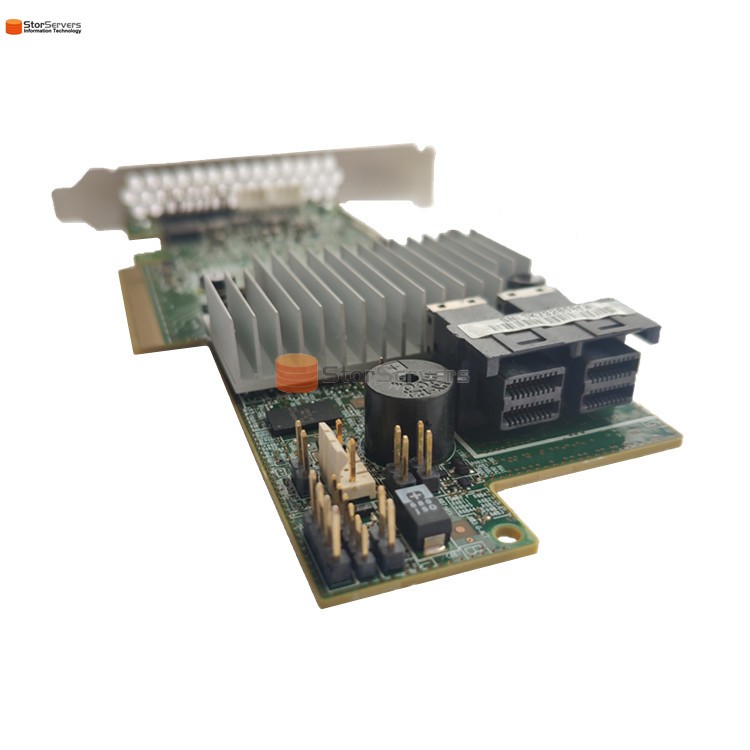

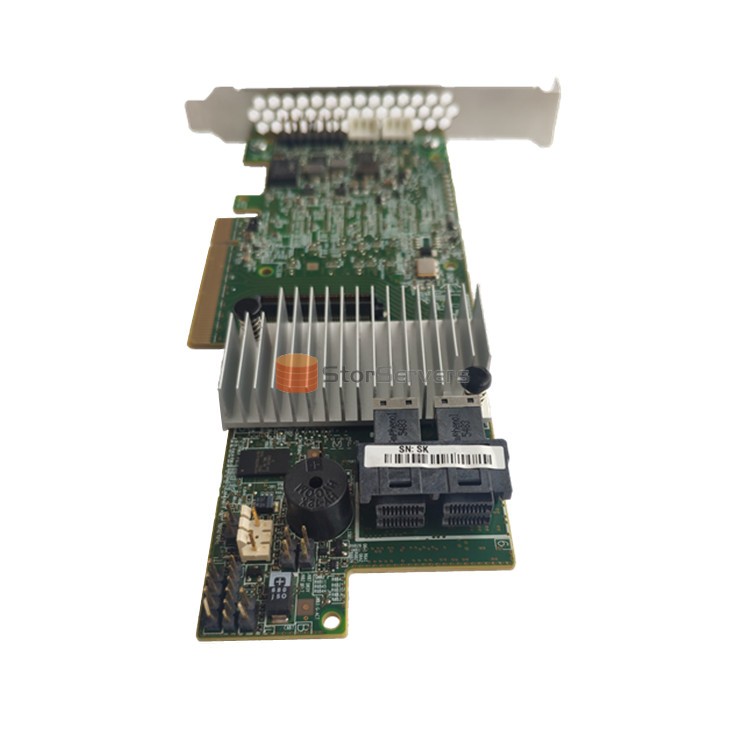

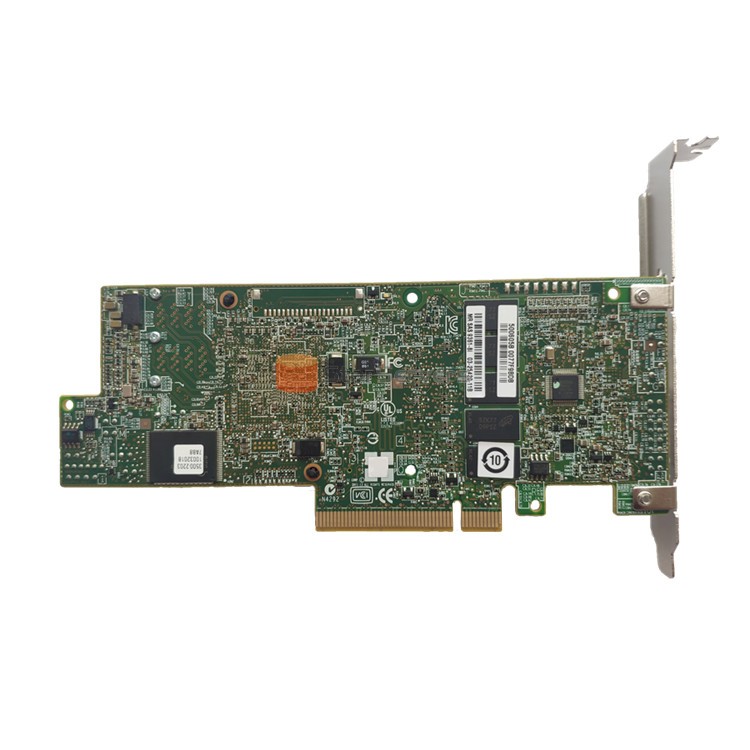

LSI 9361 8i 2G 05-25420-17 RAID CARD

KEY Features

• High-performance 12 Gb/s data transfer rates

• Eight internal 12 Gb/s SATA+SAS ports

• Two mini-SAS SFF8643 internal connectors (horizontal mount)

• SAS3108: 1.2 GHz PowerPC 476 dual-core 12 Gb/s ROC

• PCI Express 3.0 host interface

• Cache memory options:

− 1 GB 1866 MHz DDR3 SDRAM

− 2 GB 1866 MHz DDR3 SDRAM

• RAID levels 0, 1, 5, 6, 10, 50, and 60

• Support for CacheVault flash cache protection

Key Advantages

• 12 Gb/s solutions accelerate performance for next-generation data centers, web, and cloud

• Delivers enterprise-class data protection and security

• Preserves investment in 6 Gb/s and 3 Gb/s drives

• Support for Advanced Software options

• Connect up to 128 3 Gb/s, 6 Gb/s, or 12 Gb/s SATA and SAS devices

Specification

Model	9361 8i 2g
MPN	05-25420-17 03-25420-08 LSI00462
Certification	FCC,ce, RoHS
Connectors	Two mini-SAS SFF8643 internal connectors
Device Support	Up to 128 SAS and/or SATA devices
Data Transfer Rates	Up to 12 Gb/s per port
Host Bus Type	x8 lane PCl Express 3.0 compliant
l/0 Processor/SAS Controller	SAS3108 12 Gb/s dual-core ROC
Cache Memory Options	2GB 1866 MHz DDR3 SDRAM
Key RAID Data Protection Features	RAID levels 0,1,5, and 6 RAID spans 10,50, and 60
Availability	In Stock

Lead time

Quantity (pieces)	1-10	10-60	>60
Lead time (days)	3	3-5	To be negotiated

About Us

STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!

Our Advantages

FAQ

Q1: What payment method do you accept?

A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
