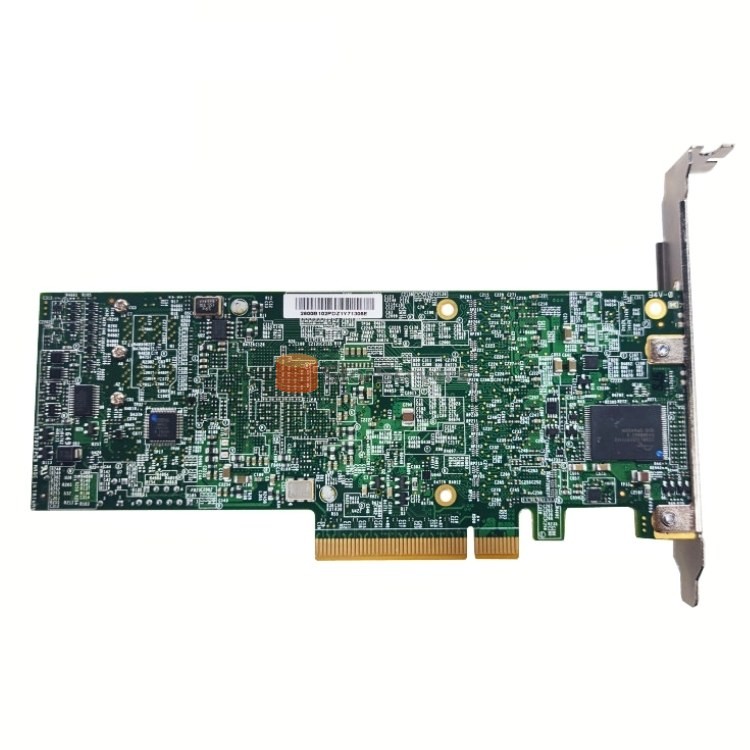

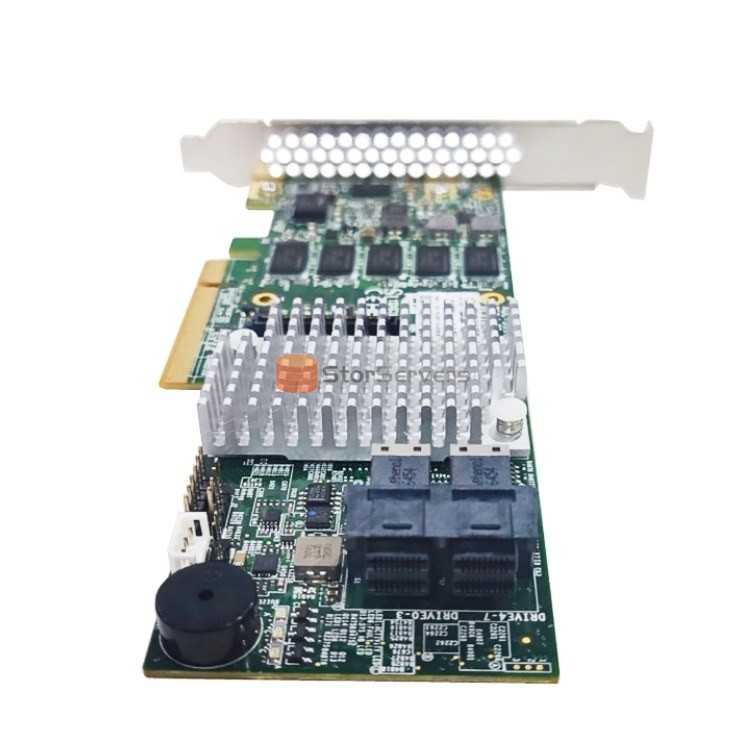

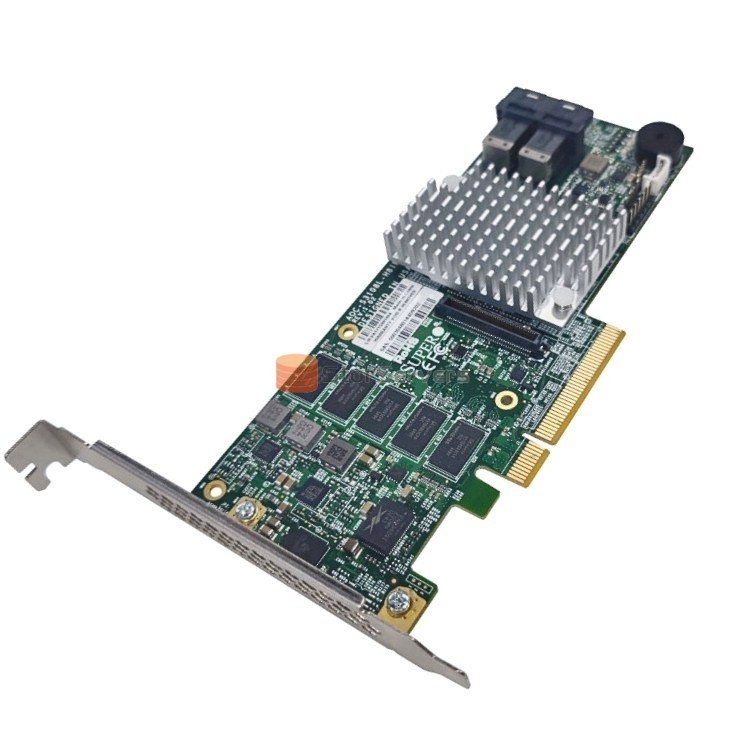

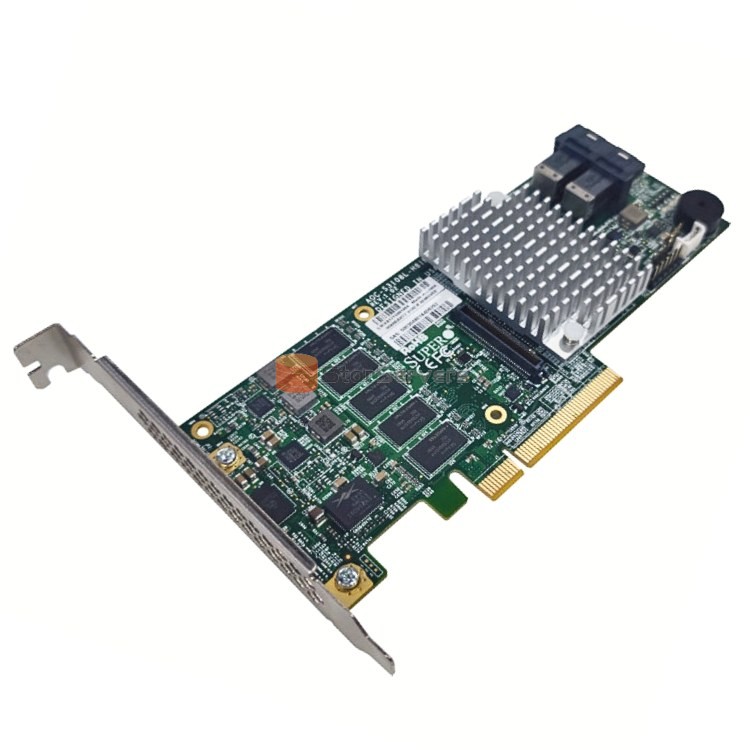

MegaRAID Low Profile AOC-S3108L-H8iR features 8 internal SAS connectors for high-performance storage connectivity. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.
|
Model |
AOC-S3108L-H8IR |
|
SAS Controller |
LSI SAS 3108 |
|
Cache Protection |
|
|
Warranty |
3 years |
Package Type :
CartonSingle package size :
26*20*8CMSingle gross weight :
0.54 KGMin. order :
1 PieceShipping :
Contact supplier to negotiate shipping detailsPayments :
Western Union、L/C、T/T、MoneyGram、D/A、D/PReturns & Refunds :
Returns & refunds acceptKey Features
• LSI SAS 3108 8-port PCI-E SAS-3 controller
• 8-port (8 internal) 12Gb/s per port
• Supports RAID 0, 1, 5, 6, 10, 50, 60
• On board hardware IO Processor
• 2GB 1866MHz DDR3 on-card cache
• Advanced array configuration and management utilities
• Automatically negotiates PCI-E link widths
• Power management support
• Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
• Port independent auto-negotiation
• Supports SSP, SMP, STP and SATA protocols
• Optional Supercap/TFM Unit for cached data protection (BTR-TFM8G-LSICVM02) - operating temperature (Ambient) from 10°C - 55°C
• OS Support : Windows 2012, 2k8 64/32 bit, RedHat Enterprise and SUSE Linux
Specification
|
Model |
AOC-S3108L-H8IR |
|
IO controller |
LSI SAS 3108 |
|
Number of internal ports |
4 |
|
Directly serviced SAS drives |
8 |
|
Directly serviced SATA drives |
8 |
|
Raid levels |
0, 1, 5, 6, 10, 50, 60 |
|
Type |
SAS3 |
|
Availability |
In Stock |
Lead time
| Quantity (pieces) | 1-10 | 10-60 | >60 |
| Lead time (days) | 3 | 3-5 | To be negotiated |
