440-16i PCIe HBA card 12 Gb SAS PCIe 4.0 x8
HBA card 9500-16i
Original LSI 9500-16i
440-16i 12Gb SAS
440-16i PCIe SAS3816
HBA 9500-16i SAS/SATA PCIe Gen4 12Gb HBA

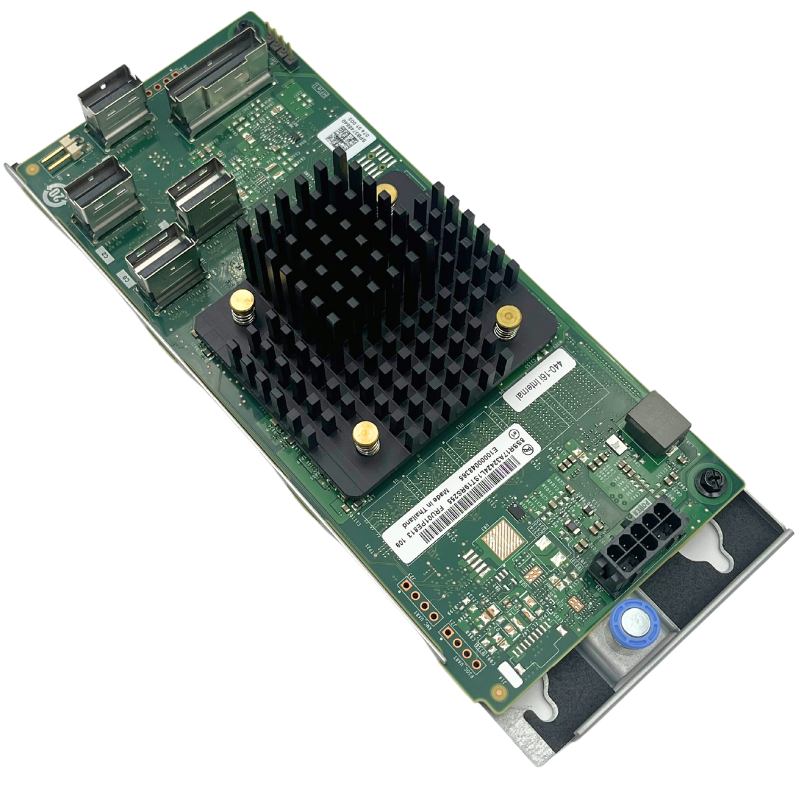

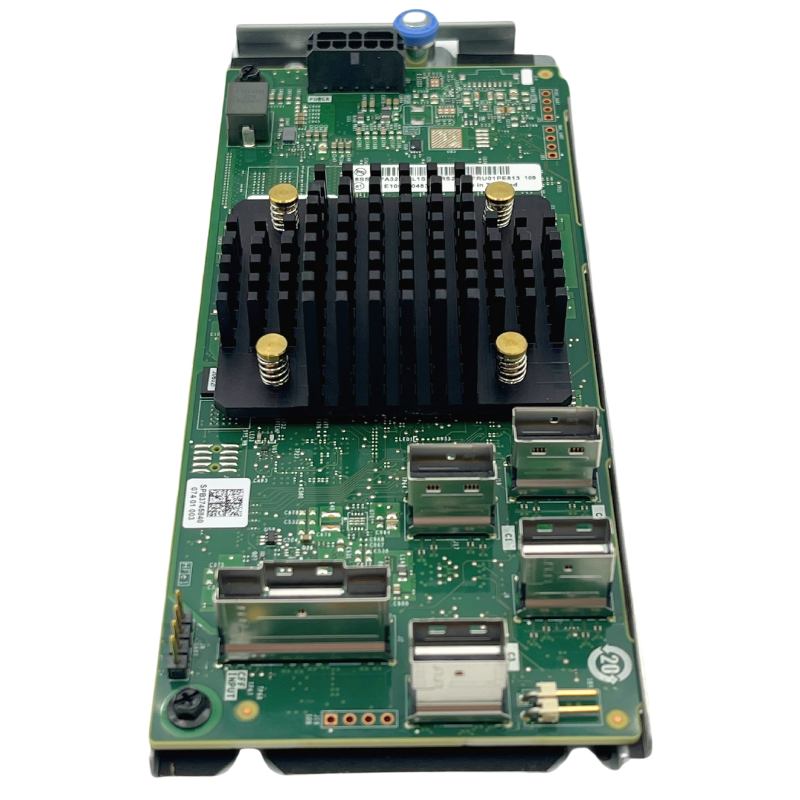

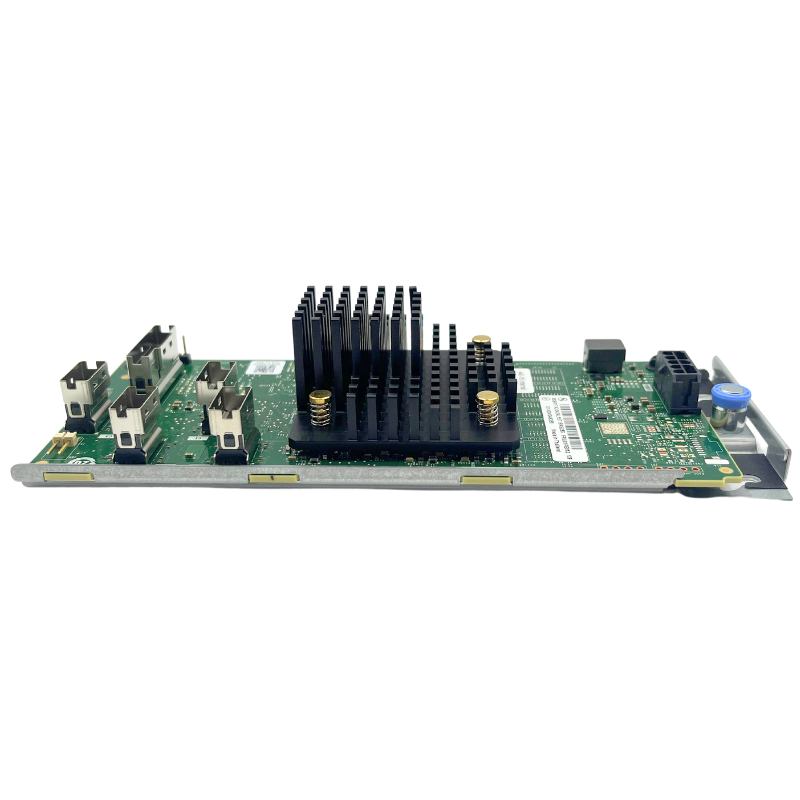

Original 9500-16i 440-16i 12Gb/s SAS Tri-Mode Storage HBA card SAS3816

12Gb/s SAS/SATA/NVMe Tri-Mode PCIe HBAs
Model 440-16i
PN 4Y37A78602
Form factor PCIe low profile
Equivalent
HBA 9500-16i
Device Support 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
Warranty 3 Years

  • Model :

    440-16i
  • Part number :

    4Y37A78602
  • Package Type :

    Carton
  • Single package size :

    26*20*8 CM
  • Single gross weight :

    0.54 KG
  • Min. order :

    1 Piece
  • Shipping :

    Contact supplier to negotiate shipping details
  • Payments :

    Western Union、L/C、T/T、MoneyGram、D/A、D/P
  • Returns & Refunds :

    Returns & refunds accept
  • Warranty :

    3 Years
440-16i PCIe HBA card 12 Gb SAS PCIe 4.0 x8
Key Features

The 440 HBAs have the following features and specifications:

  • PCIe 4.0 x8 host interface
  • 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3808 and SAS3816 IOC designs
  • Two adapter form factors:
    • Low-profile PCIe adapter with broad server compatibility
    • Custom form-factor, designed to not consume a standard PCIe slot
  • 8x or 16x 12 Gbps SAS/SATA ports for connectivity to 8 or 16 internal drives respectively
  • Up to 12 Gbps throughput per port
    • Supports 12, 6, or 3 Gbps SAS speeds
    • Supports 6 or 3 Gbps SATA speeds
  • One or two x8 HD Mini-SAS connectors to drive backplanes (SFF-8654 x8)
  • Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
  • Support internal SAS tape drives
  • Optimized for SSD performance
  • High performance architecture with very deep queue depth
  • Advanced power management support
  • Support for SSP, SMP, STP, and SATA protocols
  • End-to-End CRC with Advanced Error Reporting
  • Spread Spectrum Clocking for EMI reductions
  • Supports 512e, 512n and 4K (when available) formatted drives
  • Compliant with Disk Data Format (DDF) configuration on disk (CoD).
  • S.M.A.R.T. support.
Applications
• High-port direct attached connectivity applications
• Enterprise Databases
• Analytics Applications
• Medical Imaging
• Media Applications
• Flexible solutions for cloud computing
Specification
Model 440-16i
Ports 16 internal
PN 4Y37A78602
Connectors SAS3816
Storage Interface 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
I/O Processor/ SAS  Controller SAS3816
Host Interface Two x8 SFF-8654
Typical Power 8.9W
Physical Dimensions 6.127 in. × 2.712 in. (155.65 mm × 68.90 mm)
Cable Support Passive Copper

Lead time

Quantity (pieces) 1-10 10-60 >60
Lead time (days) 3 3-5 To be negotiated
