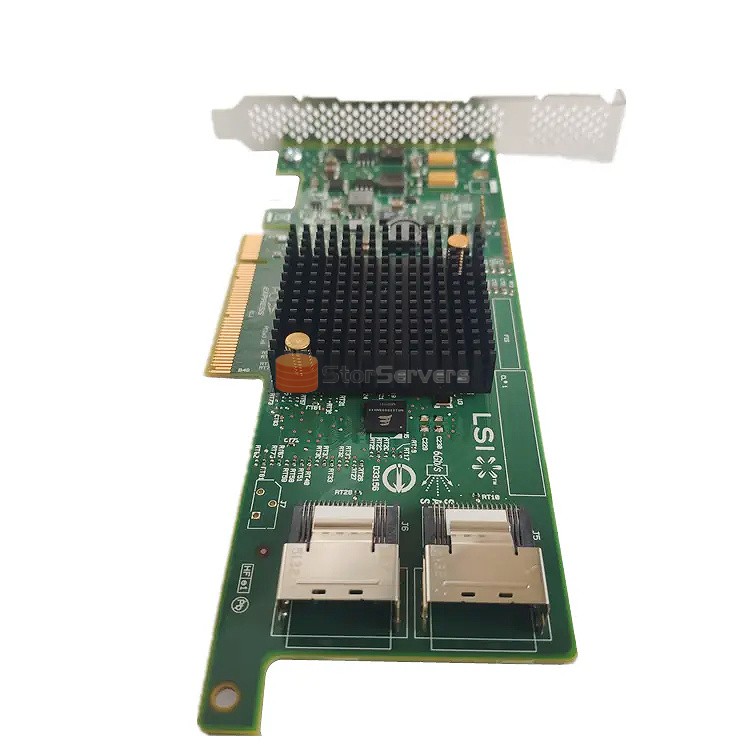

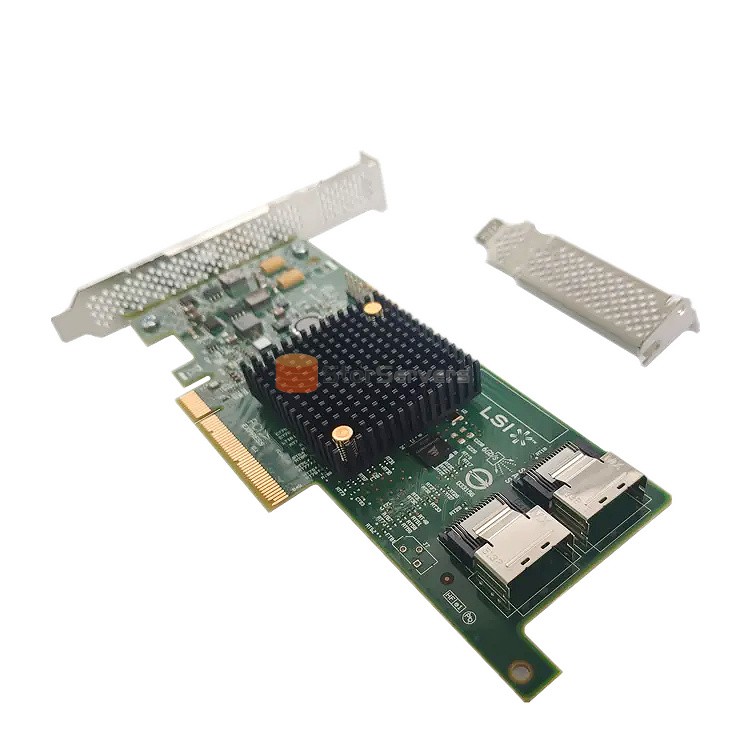

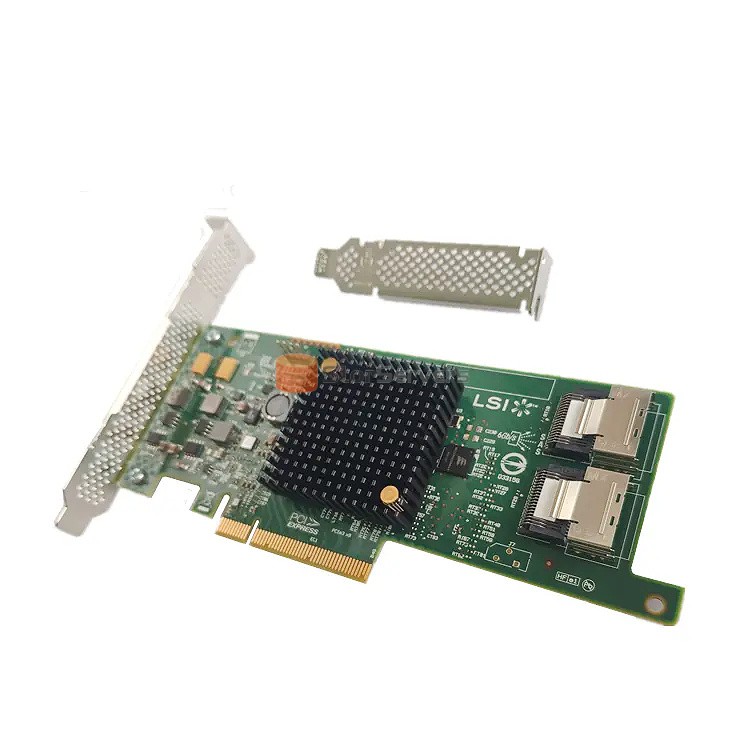

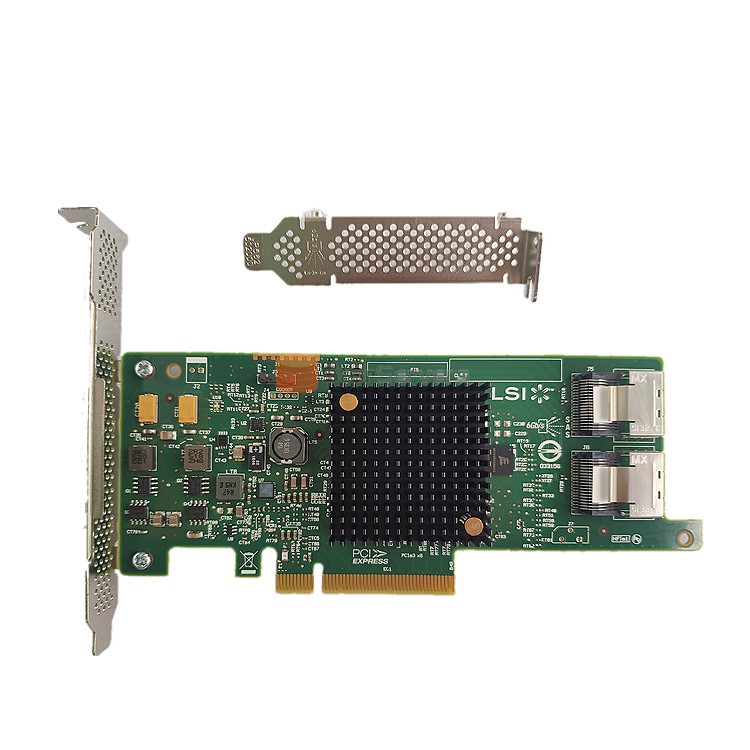

| Model | LSI 9217-8i |
| I/O | LSI SAS2308/ Fusion MPT 2.0 |
| Device Support | 256 SAS+SATA devices |
| Warranty | 3 Years |
Key Features
■ 8 Internal 6Gb/s SAS+SATA ports
■ 8 lanes, PCI Express 3.0
■ Low profile form factor design
■ Two x4 mini-SAS internal connector (SFF8087)
■ LSISAS2308 6Gb/s SAS+SATA Controller
■ Supports up to 256 SAS or SATA end devices
■ Supports SSDs, HDDs and tape drives
■ Offers Integrated RAID (0, 1, 1E and 10)
Key Advantages
■ Provides state of the art connectivity for servers and appliances with internal storage and the ability to add external storage
■ 8 lanes of PCI Express 3.0 provides fast signaling for high-bandwidth applications
■ High performance with 6Gb/s data transfer rates
| Model | LSI 9217-8i |
| Ports | 8 ports int |
| Connectors |
One x4 internal mini-SAS (SFF8087) |
| Data Transfer Rates | 8 ports, 6Gb/s SAS 2.1 Compliant |
| I/O Controller | LSI SAS2308/ Fusion MPT 2.0 |
| Host Bus Type | x8 lane, PCI Express 3.0 |
| Integrated RAID (IR) |
RAID 0 , RAID 1 , RAID 1E , RAID 10 |
| Brackets | Full height and low profile |
| Cable Support | Passive Copper |
| Availability |
In Stock |
| Warranty |
3 Years |
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
