• Ideal for bandwidth-intense applications such as UHD and big data analytics
• Tri-Mode connectivity enabling maximum data center flexibility
• Highest sequential throughput; ideal for video streaming, big data analytics, medical imaging and media applications
• High bandwidth storage to SAS, SATA, or NVMe devices
Key Features
• x16 PCIe 3.1 Host Interface
− Supports x16, x8, x4, x2, x1 PCIe lanes at a transfer rate up to 8.0 GT/s per lane, full duplex
− Lane and polarity reversal
− Variable PCIe bandwidth negotiation
• Low Profile MD2 Form Factor
• Tri-Mode enabled external storage interface
• Supports 12Gb/s SAS, 6Gb/s SATA, and PCIe (NVMe) up to 8.0 GT/s
Specification

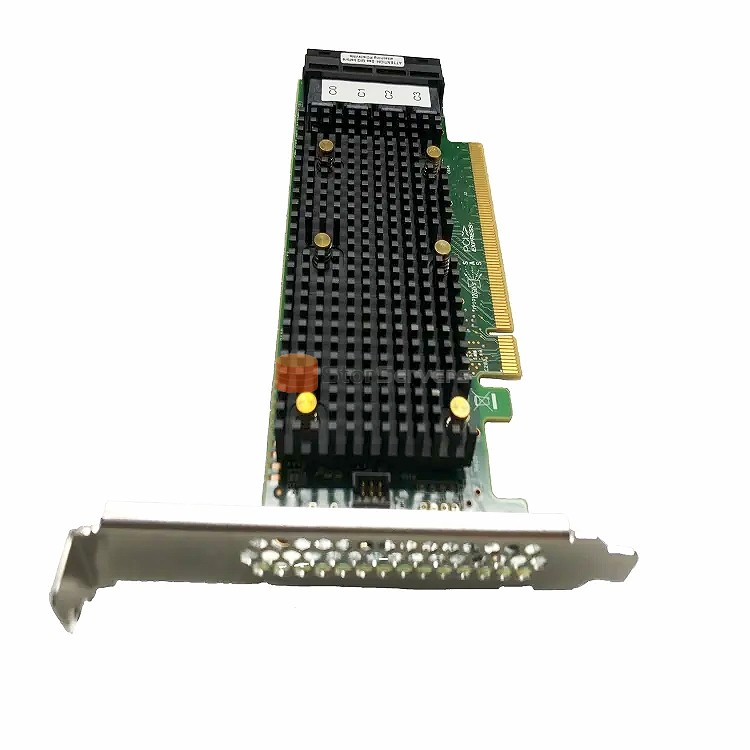

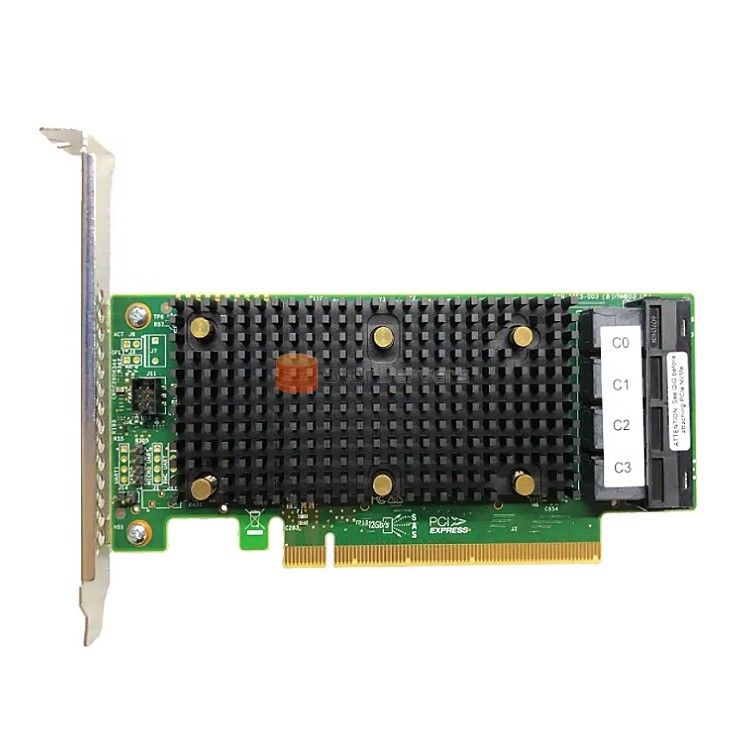

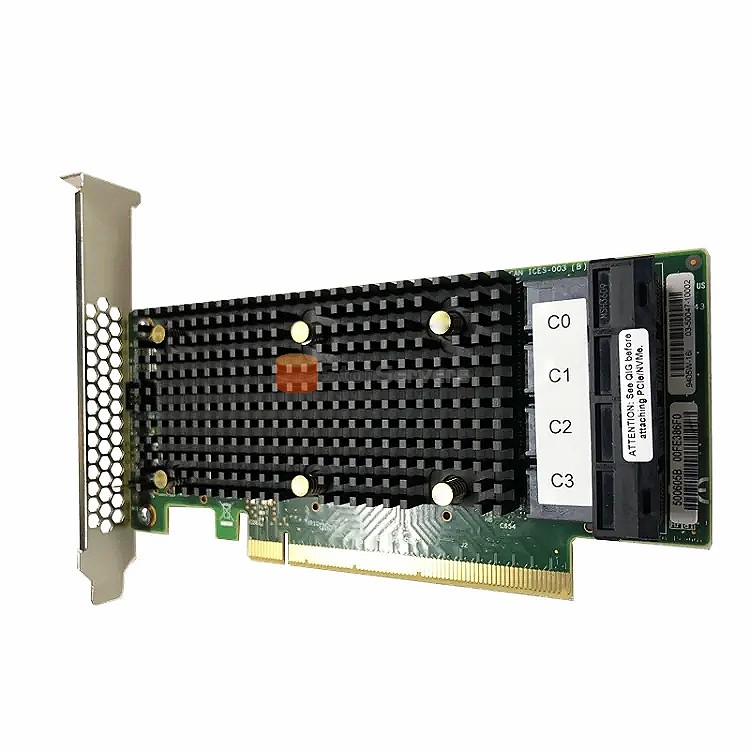

Model
LSI 9405W-16i
Ports
16 internal
PN
05-50047-00
Connectors
Four (x4) SFF-8643
Storage Interface
SAS, SATA, PCIe (NVMe)
I/O Processor/ SAS Controller
SAS3616W
Max Devices Per Controller
SAS/SATA: 1024, NVMe: 24
Host Interface
PCIe 3.1 x16
Cable Support
Passive
Typical Power
14.0W
Physical Dimensions
6.127” x 2.712”
