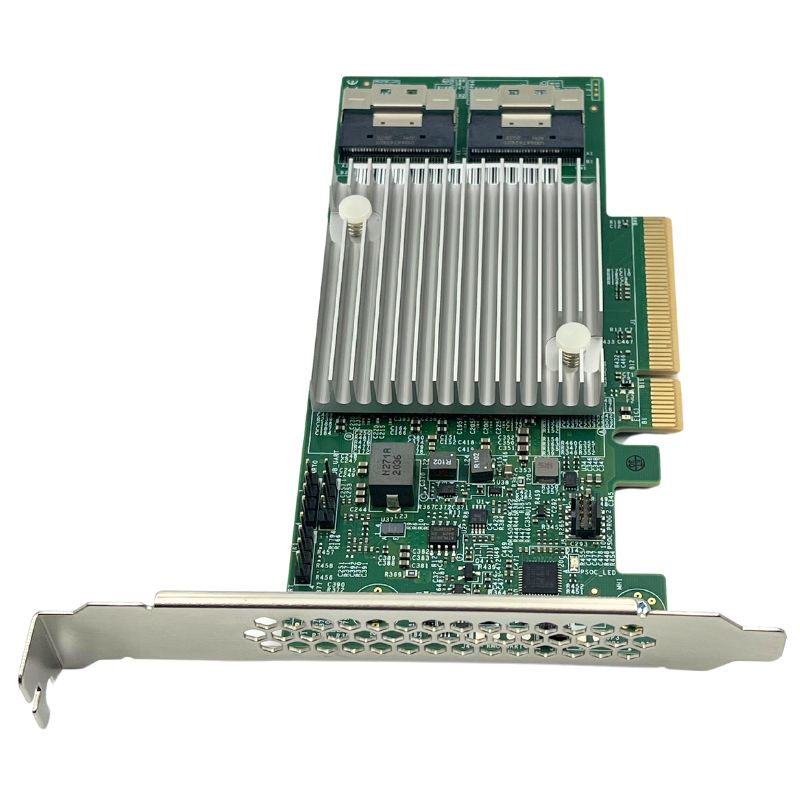

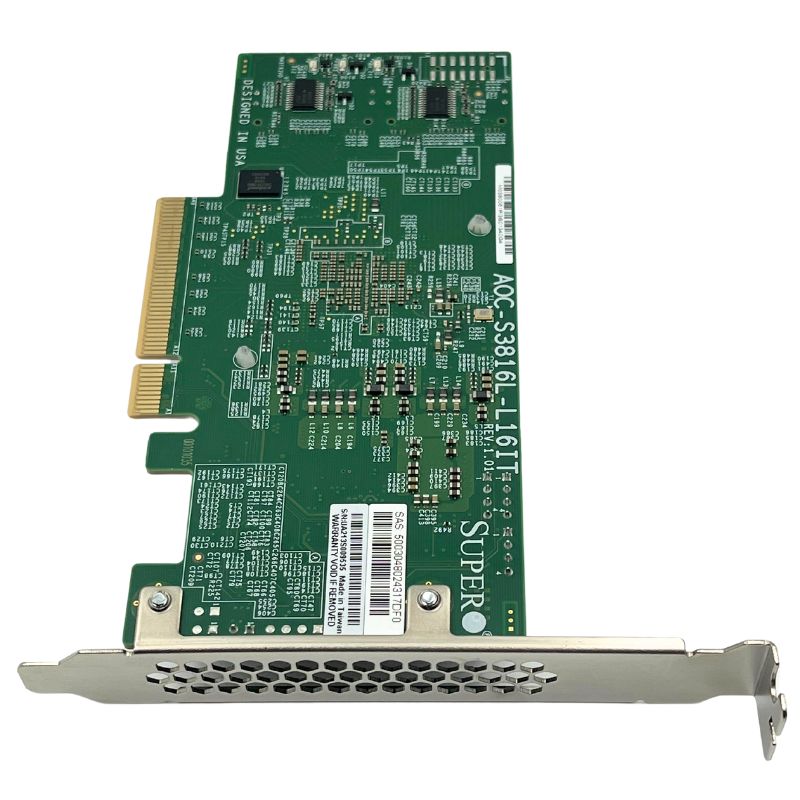

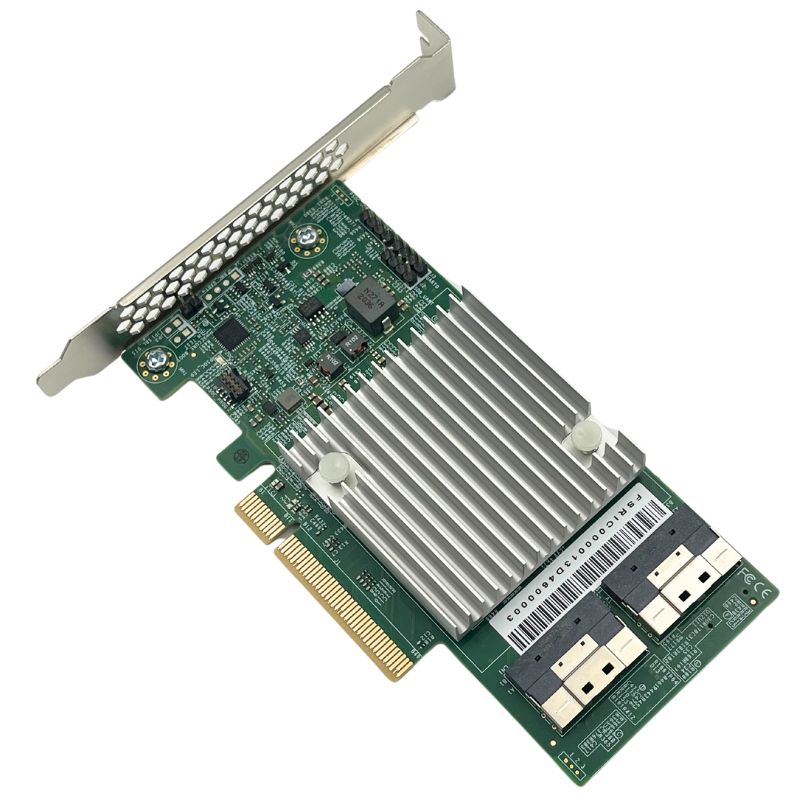

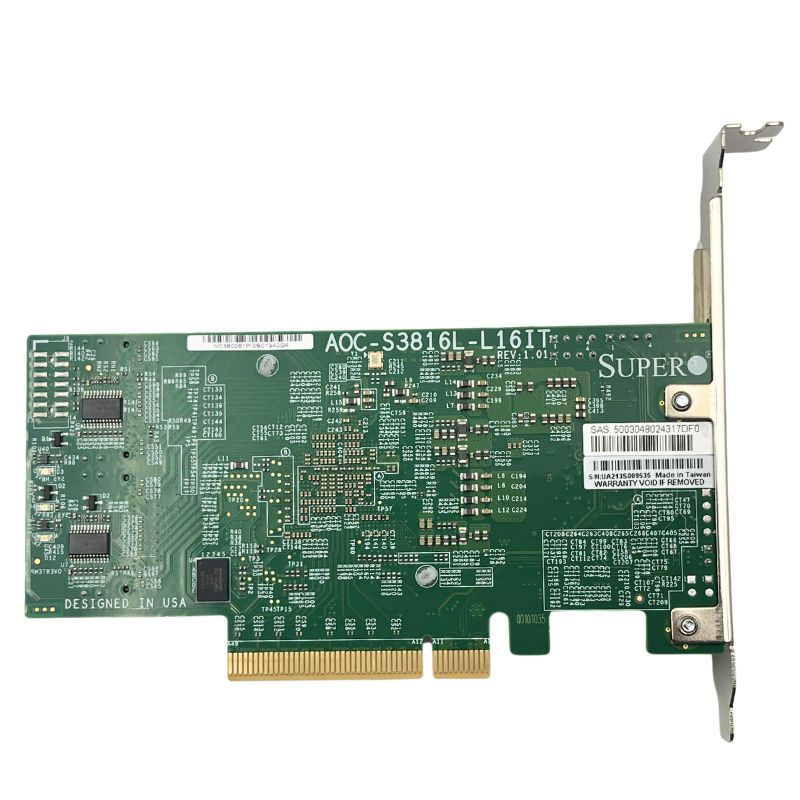

Original AOC-S3816L-L16IT Tri-Mode Storage Controller HBA card sff8654

AOC-S3816L-L16IT 4 GB
Tri-Mode Storage HBA card
AOC-S3816L-L16IT
Controller Card AOC-S3816L-L16IT
LSI sas 9500-16i

Original AOC-S3816L-L16IT Tri-Mode Storage Controller HBA card sff8654

12Gb/s SAS/SATA/NVMe Tri-Mode PCIe HBAs
Model AOC-S3816L-L16IT
Similar models 05-50134-00
I/O SAS3816
Device Support 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
Warranty 3 Years

  • Model :

    AOC-S3816L-L16IT

  • Package Type :

    Carton

  • Single package size :

    20*26*5

  • Single gross weight :

    75 grams

  • Min. order :

    1 Piece

  • Shipping :

    Contact supplier to negotiate shipping details

  • Payments :

    Western Union、L/C、T/T、MoneyGram、D/A、D/P

  • Returns & Refunds :

    Returns & refunds accept

  • Warranty :

    3 Years
Inquire Now
Key Features
  − 12Gb/s SAS
  − 6Gb/s SATA
  − Gen 4.0 PCIe (NVMe)
• Hardware Secure Boot
• Universal Bay Management (UBM) ready (SFF-TA-1005)
• 13,700 MBs (256K Seq Rd)
• 3M IOPs (4K RR)
• x8 PCIe Gen 4.0 Host Interface
  − Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 16.0 GT/s per lane, full duplex
  − Lane and polarity reversal
• SFF-9402 Compliant Connector Pin-out
• Up to 1024 SAS/SATA devices
• Up to 32 NVMe devices
• Form Factor Friendly Cable Exit
Applications
• High-port direct attached connectivity applications
• Enterprise Databases
• Analytics Applications
• Medical Imaging
• Media Applications
• Flexible solutions for cloud computing
Specification
Model AOC-S3816L-L16IT
Ports 16 internal
Connectors Two x8 SFF-8654
Storage Interface 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
I/O Processor/ SAS  Controller SAS3816
Host Interface x8 PCIe Gen 4.0
Typical Power 8.9W
Physical Dimensions 6.127 in. × 2.712 in. (155.65 mm × 68.90 mm)
Cable Support Passive Copper
