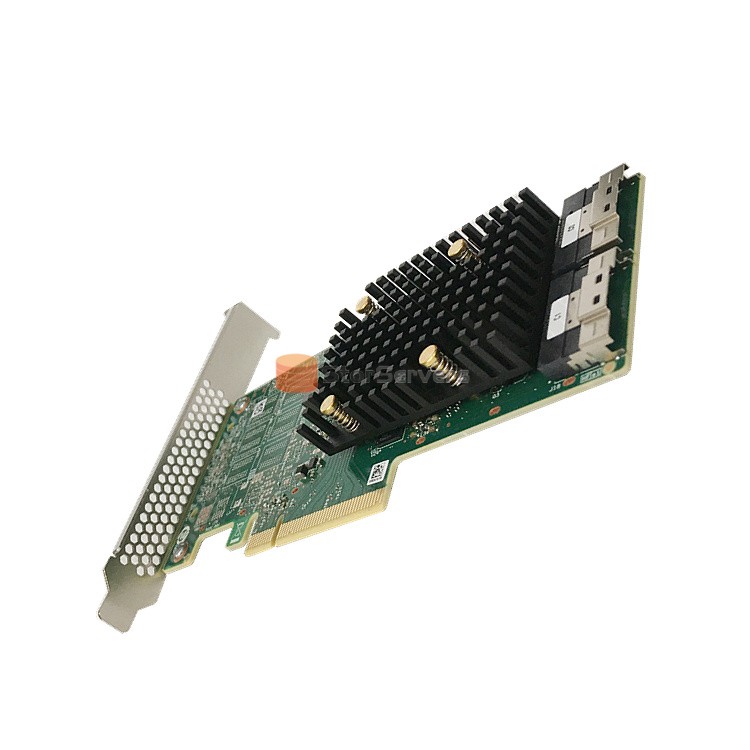

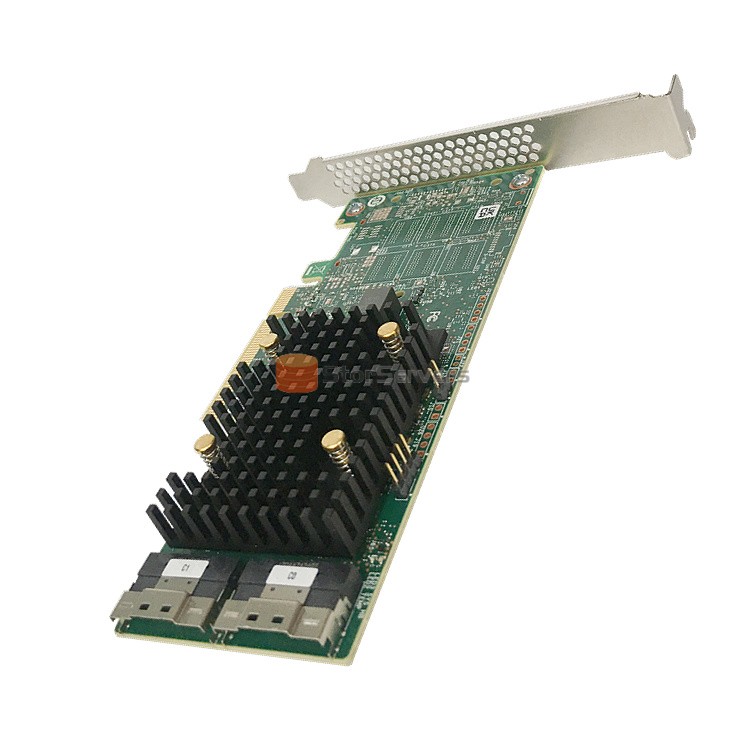

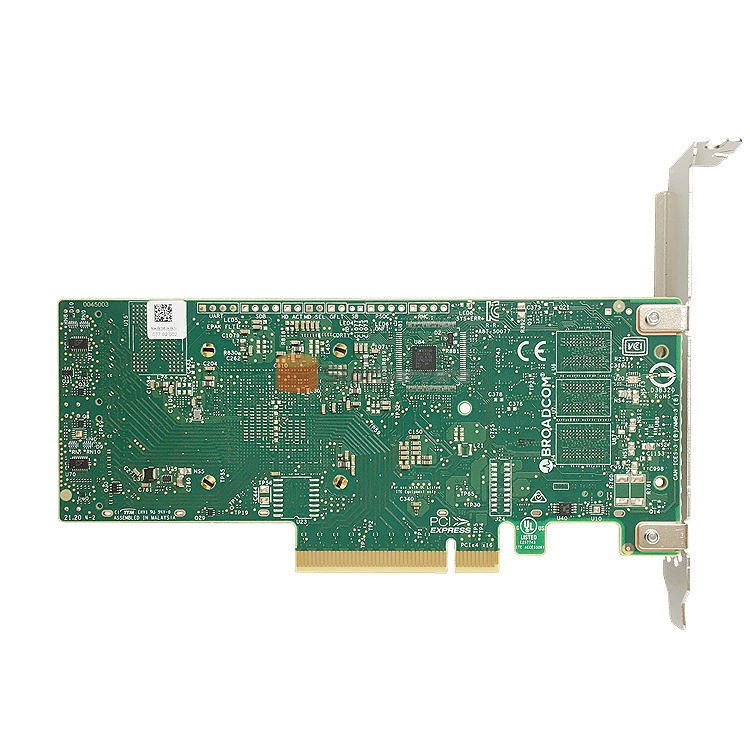

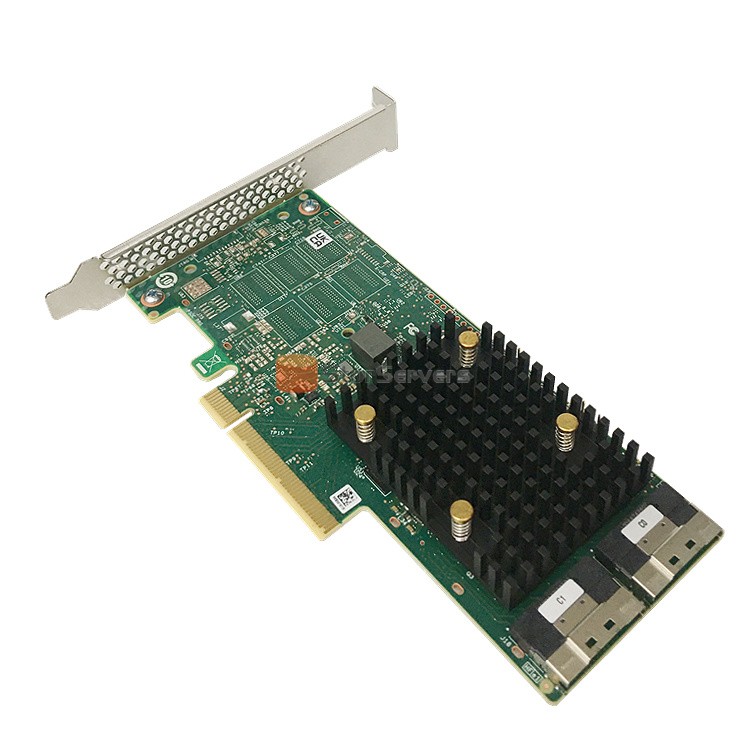

Original LSI 9500-16i 05-50134-00 Tri-Mode Storage HBA card sff8654

LSI sas 9500-16i
Tri-Mode Storage HBA card
12gb/s sff8654 for HBAs
Original 05-50134-00 for lsi
bulk lsi card for sale

Original LSI 9500-16i 05-50134-00 Tri-Mode Storage HBA card sff8654

12Gb/s SAS/SATA/NVMe Tri-Mode PCIe HBAs
Model LSI 9500-16i
PN 05-50134-00
I/O SAS3816
Device Support 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
Warranty 3 Years

Inquire Now
LSI 9500-16i 05-50134-01 HBA card
Key Features
  − 12Gb/s SAS
  − 6Gb/s SATA
  − Gen 4.0 PCIe (NVMe)
• Hardware Secure Boot
• Universal Bay Management (UBM) ready (SFF-TA-1005)
• 13,700 MBs (256K Seq Rd)
• 3M IOPs (4K RR)
• x8 PCIe Gen 4.0 Host Interface
  − Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 16.0 GT/s per lane, full duplex
  − Lane and polarity reversal
• SFF-9402 Compliant Connector Pin-out
• Up to 1024 SAS/SATA devices
• Up to 32 NVMe devices
• Form Factor Friendly Cable Exit
Applications
• High-port direct attached connectivity applications
• Enterprise Databases
• Analytics Applications
• Medical Imaging
• Media Applications
• Flexible solutions for cloud computing
Specification
Model LSI 9500-16i
Ports 16 internal
PN 05-50134-00
Connectors Two x8 SFF-8654
Storage Interface 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
I/O Processor/ SAS  Controller SAS3816
Host Interface x8 PCIe Gen 4.0
Typical Power 8.9W
Physical Dimensions 6.127 in. × 2.712 in. (155.65 mm × 68.90 mm)
Cable Support Passive Copper
