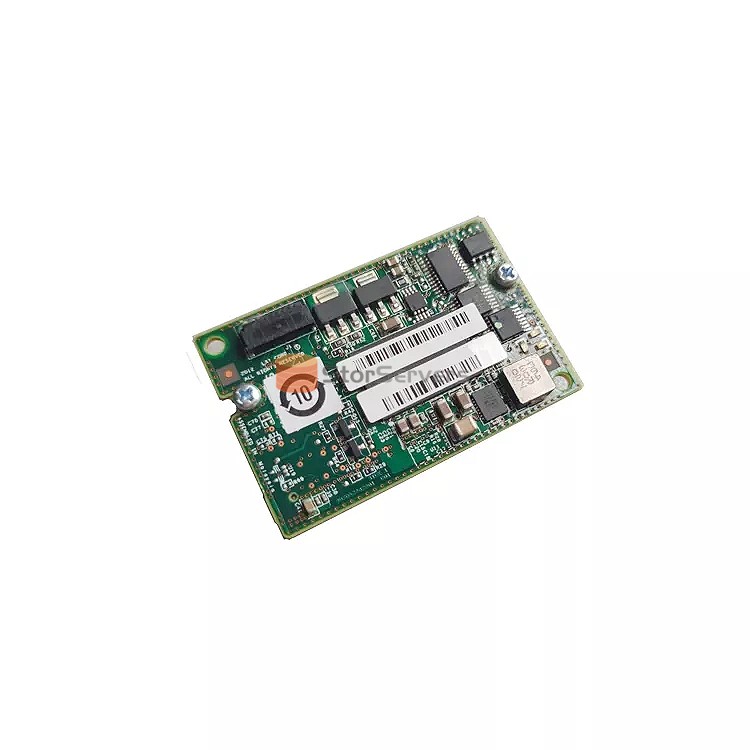

LSI CVM02 8G LSI00418 MegaRAID controllers supported LSI 9361-8i 9361-4i 9380-8e 9380-4i4e

CVM02 05-25444-00
LSI CVM02 8G
MegaRAID supported LSI 9361-8i 9361-4i 9380-8e 9380-4i4e

LSI CVM02 8G LSI00418 MegaRAID controllers supported LSI 9361-8i 9361-4i 9380-8e 9380-4i4e

CVM02 Optional Accessory Modules Enable Flash Cache Protection for 12Gb/s SAS/SATA/NVMe PCIe RAID Controllers
Model LSI CVM02
Part Number 05-25444-00 LSI00418
MegaRAID controllers supported LSI 9361-8i , LSI 9361-4i , LSI 9380-8e , LSI 9380-4i4e
Warranty 3 years

  • Package Type :

    Carton

  • Single package size :

    18*15*5 CM

  • Single gross weight :

    0.20 KG

  • Min. order :

    1 Piece

  • Shipping :

    Contact supplier to negotiate shipping details

  • Payments :

    Western Union、L/C、T/T、MoneyGram、D/A、D/P

  • Returns & Refunds :

    Returns & refunds accept
Inquire Now
LSI CVM02 8G 05-25444-00 CacheVault
Key Features
• Cached data protection for MegaRAID 95xx, 94xx, and 93xx series adapters.
• NAND flash protects the integrity of cached data in the event the system stops responding, crashes, or experiences kernel panics or power failures.
• Automatically transfers cached data to flash storage when a power failure occurs.
• Eliminates the need for lithium-ion batteries and associated hardware maintenance cost, resulting in a greener, lower total cost cache protection solution.
• Does not require special IATA shipping compliance.
• Suitable for file, web, database, and email servers, storage appliances, high-performance computing, digital content, medical imaging, and similar applications.

The following MegaRAID controllers support the LSICVM02 CacheVault Kit:
 MegaRAID SAS 9361-4i RAID controller
 MegaRAID SAS 9361-8i RAID controller
 MegaRAID SAS 9380-4i4e RAID controller
 MegaRAID SAS 9380-8e RAID controller
Specification
Model LSI CVM02 8G
MPN 05-25444-00
PN LSI00418
Super-capacitor model FBU02
MegaRAID controllers supported LSI 9361-8i , LSI 9361-4i , LSI 9380-8e , LSI 9380-4i4e
Kit contents

Flash module , Super-capacitor , Mounting clip/screws

240-mm cable , 620-mm cable
Time to cache protection Immediate Capacitor charges in seconds while the system boots
Shipping requirements Standard
Data recoverable for 3+ years
Operating temperature 0°C to 55°C
Storage temperature –40°C to 70°C
Availability In Stock

Lead time

Quantity (pieces) 1-10 10-60 >60
Lead time (days) 3 3-5 To be negotiated
