AFM-700 Adaptec Flash Module 700 kit 2275400-R Zero-Maintenance Cache Protection

adaptec afm 700
afm 700cc
Adaptec Flash Module 700 kit
afm 700 2275400-R
afm 700 for Adaptec 8805

AFM-700 Adaptec Flash Module 700 kit 2275400-R Zero-Maintenance Cache Protection

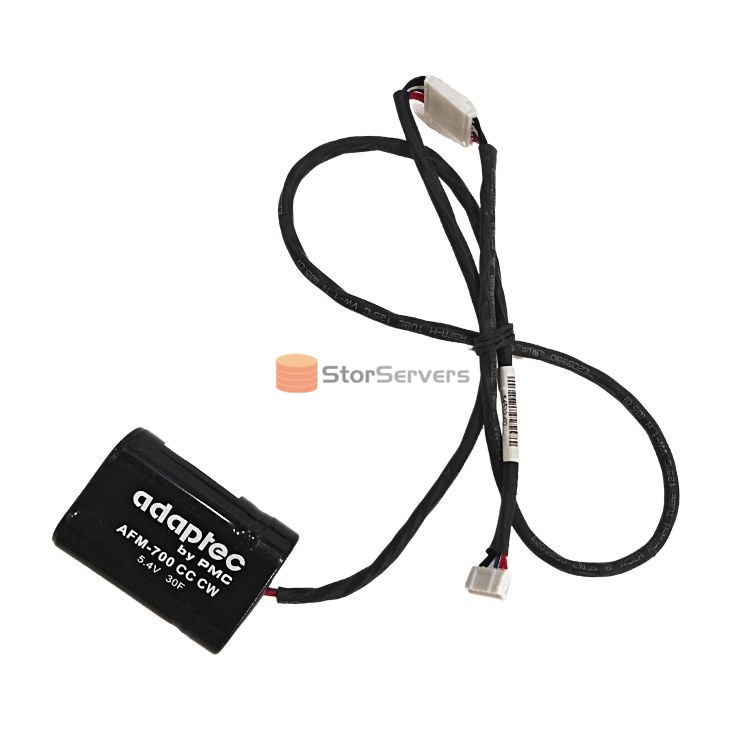

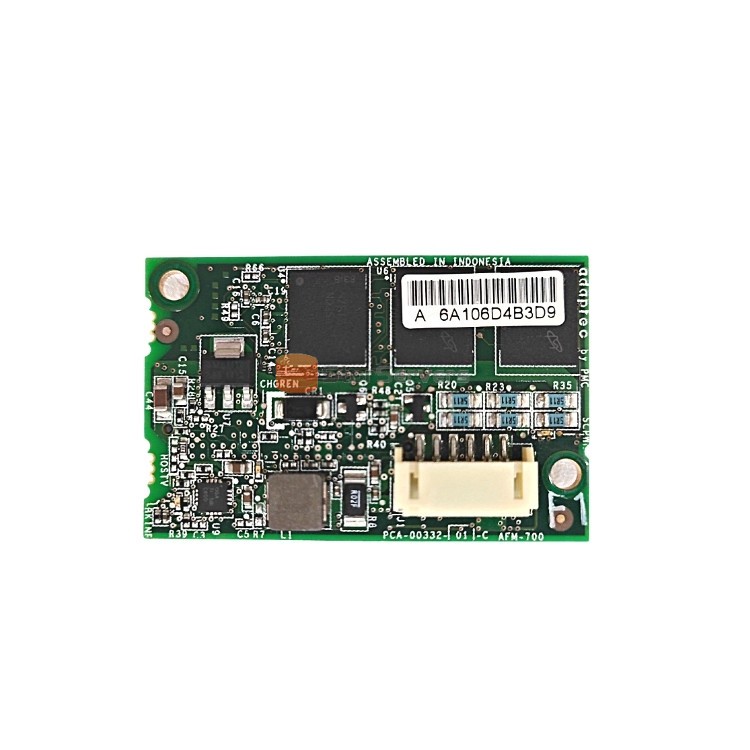

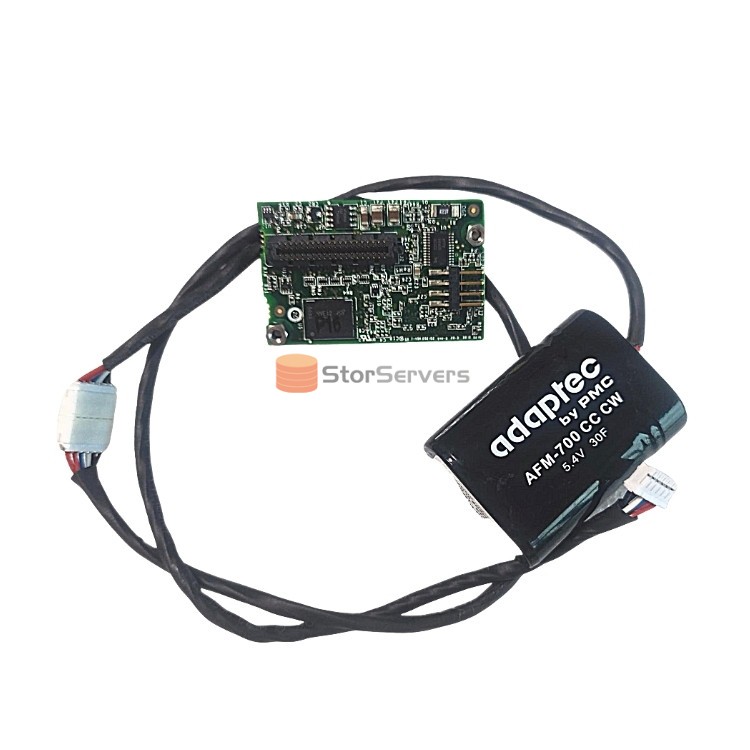

The Adaptec Flash Module 700 (AFM-700) provides Zero-Maintenance Cache Protection (ZMCP) for Adaptec Series 8, Series 8Q/8ZQ (12Gb/s) and Series 7 and Series 7Q (6Gb/s) RAID adapters to protect data in the controller cache without incurring monitoring, maintenance, replacement, or disposal costs.
Model AFM-700
Part Number 2275400-R
Cable Length

Cable connected to the AFM-700: ~ 7 inches; extension cable: ~ 18 inches
Warranty 3 years

  • Package Type :

    Carton

  • Single package size :

    18*15*5 CM

  • Single gross weight :

    0.20 KG

  • Min. order :

    1 Piece

  • Shipping :

    Contact supplier to negotiate shipping details

  • Payments :

    Western Union、L/C、T/T、MoneyGram、D/A、D/P

  • Returns & Refunds :

    Returns & refunds accept
Inquire Now
AFM-700 Adaptec Flash Module 700 kit 2275400-R
Product Highlights
Third Generation Cached Data Protection for 12Gb/s and 6Gb/s RAID Adapters
  — Add-on module for Series 8 and Series 7
  — Included with Series 8Q and Series 7Q
  — Flash backup embedded into Adaptec 81605ZQ/81605Z
Real Time Health Monitoring
  — Monitors health of cache protection
  — Monitors capacity levels
Instant RAID Cache Protection
  — Fully charged within four minutes instead of hours
  — RAID performance optimized immediately
Maintenance-Free Cached Data Protection
  — Stores protected data for years
  — No need to monitor battery charge level
  — No shutdown required for battery replacement
Lower Operating Costs
  — No monitoring, maintenance, replacement or disposal costs due to batteries
No Data Loss from Power Failures
— Replaces Lithium-ion batteries Single-Level Cell (SLC) Flash
— Faster writes and better reliability than Multi-Level Cell (MLC) Flash
Environmentally Conscious
— No toxic battery disposal
— Simplified IATA compliance
Specification
Model AFM-700CC
PN 2275400-R
Cable Length

Cable connected to the AFM-700: ~ 7 inches;

extension cable: ~ 18 inches

Compatible Products (12Gb/s RAID Adapters)

• Adaptec RAID 8885

• Adaptec RAID 8805

• Adaptec RAID 8405

• Adaptec RAID 81605Z (flash backup embedded)

• Adaptec RAID 8885Q (included)

• Adaptec RAID 81605ZQ (flash backup embedded)
Compatible Products (6Gb/s RAID Adapters)

• Adaptec RAID 72405

• Adaptec RAID 78165

• Adaptec RAID 71685

• Adaptec RAID 71605

• Adaptec RAID 7805

• Adaptec RAID 71605Q (included)

• Adaptec RAID 7805Q (included)
Warranty 3 years
Typical Lifespan 5 years at 50°C
Environmental Compliance RoHS

Lead time

Quantity (pieces) 1-10 10-60 >60
Lead time (days) 3 3-5 To be negotiated
